1/2 in. Hex Hub - am-0096a_1 - Image-1 - migrated

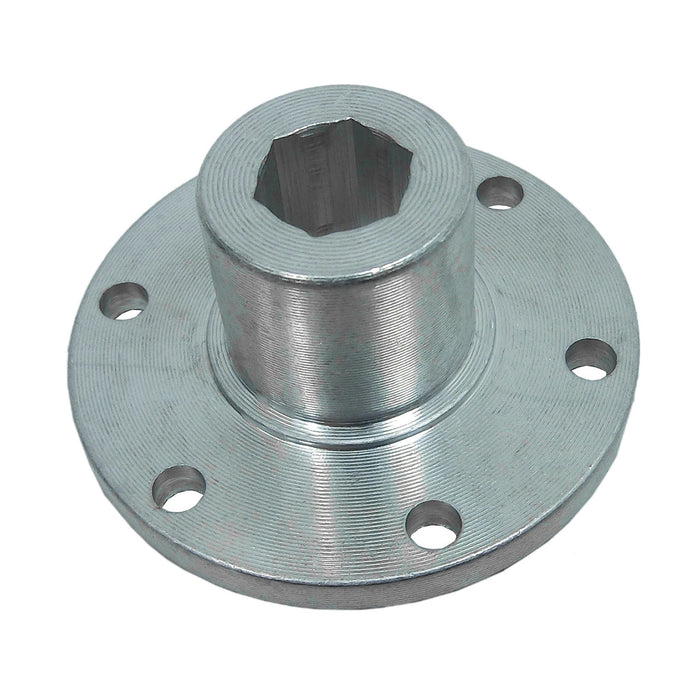

1/2 in. Hex Hub

by AndyMark
Sold out
$11.00 - $11.00
$11.00
$11.00
$11.00 - $11.00
$11.00
SKU am-0096a
  • Description
  • Specifications
  • Documentation
  • This hub fits all AndyMark wheels, sprockets, and other items with the 1.1875 in. standard bolt circle, but will NOT fit inside the pocket of the 42T Pulley.


    Note:
    The current batch of hubs have an unused keyway, and also do NOT have the hex timed to the bolt pattern.

    • Bolt Pattern: 0.204 in. diameter holes, evenly spaced on a 1.875 in. diameter bolt circle
    • Bore: 0.501 - 505 in. Hex
    • Boss Diameter: 0.956 in. - 0.960 in.
    • Material: 6061 Aluminum
    • Outside Diameter: 2.25 in.
    • Weight: 0.104 lbs.

  • CAD Files

    am-0096a 500 Hex Hub r2.STEP

    Layout Prints

    am-0096a 500HexHub_r2-1.PDF

Customer Reviews

Based on 54 reviews
70%
(38)
19%
(10)
2%
(1)
6%
(3)
4%
(2)
M
MN
Loom repair

Works perfectly to turn Structo Artcraft hex beam into a traditional beam.

G
G T
Very shinny

This hub is very shinny and made out of metal. We will be buying many more to use on stuff we make.

P
PY from Keller
Review

5 Stars

R
RM from Rochester Hills
Review

5 Stars

E
ER from Enumclaw
Review

4 Stars

123
