For Competition Robotics AndyMark recommends #25 Chain Roller Chain for lighter duty applications or #35 Roller Chain for heavier duty applications. Although this industrial roller chain may look similar to bicycle chain, the pitch - or distance between the pins - is different and likely will not be compatible with bicycle chain links and sprockets.
Chain can be attached and broken using a few different types of tools. AndyMark recommends the “Dark Soul” chain break tool for #25 chain and the ARC tool for #35 chain. These tools push in and out individual link pins for a clean break and reattachment point.
Connecting Links:
Standard connection links pin two ends of chain together to make a loop. Each end of the chain needs to end with a “narrow” link section. The link is held together by a clip that sits in a groove on the two connector pins.
Half Links:
Also called a Offset Link is for applications where one more link is too long, and one fewer link is too short. A half link connects a “narrow” link section to a “wide” link section. The link is secured with a cotter pin.
1.5 Links:
This connects to two “narrow” link sections using two connecting links, but adds an additional half link section to the overall length. Use this to eliminate the potential failure point of a cotter pin connection.
Chain Attachment Links:
These are useful links to add mounting points to your chain. Add the K-link to your chain path and bolt or rivet the link to the element you want to move to create an elevator or conveyor.
Chain Connecting Links
Original price
$1.30
-
Original price
$1.30
Original price
$1.30
$1.30
$1.30
-
$1.30
Current price
$1.30
2 Options available!
Connecting Links also known as Master Links are used to join segments of chain together or to join the ends of one segment into a loop. Descripti...
View full details
Original price
$1.30
-
Original price
$1.30
Original price
$1.30
$1.30
$1.30
-
$1.30
Current price
$1.30
Single Strand-Riveted Roller Chain 10'
Original price
$14.80
-
Original price
$14.80
Original price
$14.80
$14.80
$14.80
-
$14.80
Current price
$14.80
2 Options available!
This chain comes in a 10 ft section of either #25 or #35 size. Description Specifications Documentation Learn how to break this chain b...
View full details
Original price
$14.80
-
Original price
$14.80
Original price
$14.80
$14.80
$14.80
-
$14.80
Current price
$14.80
Roller Chain Half Link
Original price
$2.40
-
Original price
$2.40
Original price
$2.40
$2.40
$2.40
-
$2.40
Current price
$2.40
2 Options available!
Roller chain half link, choose your series #25 or #35 Specifications Documentation Weight: 0.01 lbs
Original price
$2.40
-
Original price
$2.40
Original price
$2.40
$2.40
$2.40
-
$2.40
Current price
$2.40
Inline Chain Tensioner
Original price
$18.10
Original price
$18.10
-
Original price
$18.10
Original price
$18.10
Current price
$14.48
$14.48
-
$14.48
Current price
$14.48
2 Options available!
Description Specifications Documentation This Inline Chain Tensioner for roller chain is perfect to adjust the desired tension in a long ...
View full details
Original price
$18.10
Original price
$18.10
-
Original price
$18.10
Original price
$18.10
Current price
$14.48
$14.48
-
$14.48
Current price
$14.48
Save 20%
DarkSoul #25 Chain Break
Original price
$40.00
Original price
$40.00
-
Original price
$40.00
Original price
$40.00
Current price
$32.00
$32.00
-
$32.00
Current price
$32.00
am-4024
This tool is used to remove links from a #25 chain to shorten it. Description Specifications Documentation Never again should you look at ...
View full details
Original price
$40.00
Original price
$40.00
-
Original price
$40.00
Original price
$40.00
Current price
$32.00
$32.00
-
$32.00
Current price
$32.00
Save 20%
ARC #35 Chain Break
Original price
$27.00
Original price
$27.00
-
Original price
$27.00
Original price
$27.00
Current price
$21.60
$21.60
-
$21.60
Current price
$21.60
am-4022
This tool is used to remove links from a #35 chain to shorten it. Description Specifications Documentation Have you ever needed to make a ...
View full details
Original price
$27.00
Original price
$27.00
-
Original price
$27.00
Original price
$27.00
Current price
$21.60
$21.60
-
$21.60
Current price
$21.60
Save 20%
Chain Attachment Link
Original price
$2.90
-
Original price
$3.00
Original price
$2.90
$2.90
-
$3.00
$2.90
-
$3.00
Current price
$2.90
3 Options available!
Connecting chain attachment links, also known as K-links, are used to secure components that need movement to a chain. Description Specificatio...
View full details
Original price
$2.90
-
Original price
$3.00
Original price
$2.90
$2.90
-
$3.00
$2.90
-
$3.00
Current price
$2.90
Chain 1.5 Links
Original price
$2.40
-
Original price
$2.40
Original price
$2.40
$2.40
$2.40
-
$2.40
Current price
$2.40
2 Options available!
These links add one and a half links to a run of chain making for easier cleaner alternative to half links. Description Specifications Document...
View full details
Original price
$2.40
-
Original price
$2.40
Original price
$2.40
$2.40
$2.40
-
$2.40
Current price
$2.40
Chain Bundles
Original price
$110.00
-
Original price
$122.00
Original price
$110.00
$110.00
-
$122.00
$110.00
-
$122.00
Current price
$110.00
2 Options available!
Description Specifications Documentation If you are creating a linkage, an elevator, or continuous chain loops out of #25 or #35 chain th...
View full details
Original price
$110.00
-
Original price
$122.00
Original price
$110.00
$110.00
-
$122.00
$110.00
-
$122.00
Current price
$110.00
Pin Replacement Kit For 25 Chain Break Tool
Original price
$18.00
-
Original price
$18.00
Original price
$18.00
$18.00
$18.00
-
$18.00
Current price
$18.00
am-1518
This pin kit can be used as replacement components for the #25 chain break. Description Specifications Documentation This pin kit can be u...
View full details
Original price
$18.00
-
Original price
$18.00
Original price
$18.00
$18.00
$18.00
-
$18.00
Current price
$18.00
#35 Chain Break Replacement Bolt with Pin
Original price
$7.90
-
Original price
$7.90
Original price
$7.90
$7.90
$7.90
-
$7.90
Current price
$7.90
am-1516
Description Specifications Documentation This bolt with pin is a replacement for the #35 chain break. This component does the work of pus...
View full details
Original price
$7.90
-
Original price
$7.90
Original price
$7.90
$7.90
$7.90
-
$7.90
Current price
$7.90
#35 Chain Break Replacement Bolt
Original price
$3.50
-
Original price
$3.50
Original price
$3.50
$3.50
$3.50
-
$3.50
Current price
$3.50
am-1517
Description Specifications Documentation This bolt can be used as a replacement bolt in the #35 chain break. This bolt holds the chain in...
View full details
Original price
$3.50
-
Original price
$3.50
Original price
$3.50
$3.50
$3.50
-
$3.50
Current price
$3.50

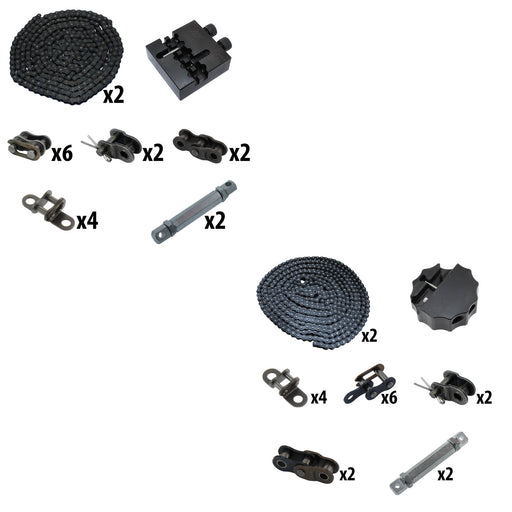

Robits #25 Series Chain Bundle
Original price
$250.00
-
Original price
$250.00
Original price
$250.00
$250.00
$250.00
-
$250.00
Current price
$250.00
am-5499
This chain kit includes everything you need to integrate chain with your Robits system. Description Specifications Documentation Chain ca...
