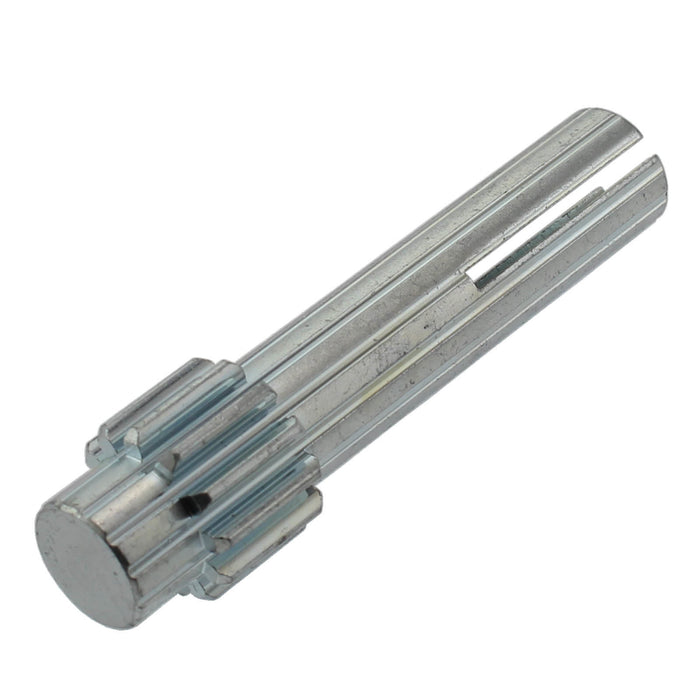

12 Tooth 20 DP 8 mm Round Bore Steel Shaft Gear for Swerve & Steer - am-3018b_1 - Image-1 - migrated

12 Tooth 20 DP 8 mm Round Bore Steel Shaft Gear for Swerve & Steer

by AndyMark
Sold out
$16.00
$16.00 - $16.00
$16.00
$9.00
$9.00 - $9.00
$9.00
SKU am-3018b
  • Description
  • Specifications
  • Documentation
  • This gear is used as the CIM pinion in the Swerve & Steer. It has a slot that serves dual purpose as both a keyway for a 2 mm wide key, but also as a clamping feature for extra retention.
    • Bore: 8 mm Round w/ keyway
    • Diametral Pitch: 20
    • Finish: Zinc Plated
    • Material: 4140 Steel
    • Pressure Angle: 14.5°
    • Teeth: 12
    • Weight: 0.123 lbs.

  • CAD Files

    am-3018b 12T CIM Shaft Gear.STEP

    Layout Prints

    am-3018b 12T CIM Shaft Gear.PDF
