12 Tooth 20 DP 8 mm Round Bore Steel Shaft Gear for Swerve & Steer - am-3018a - migrated

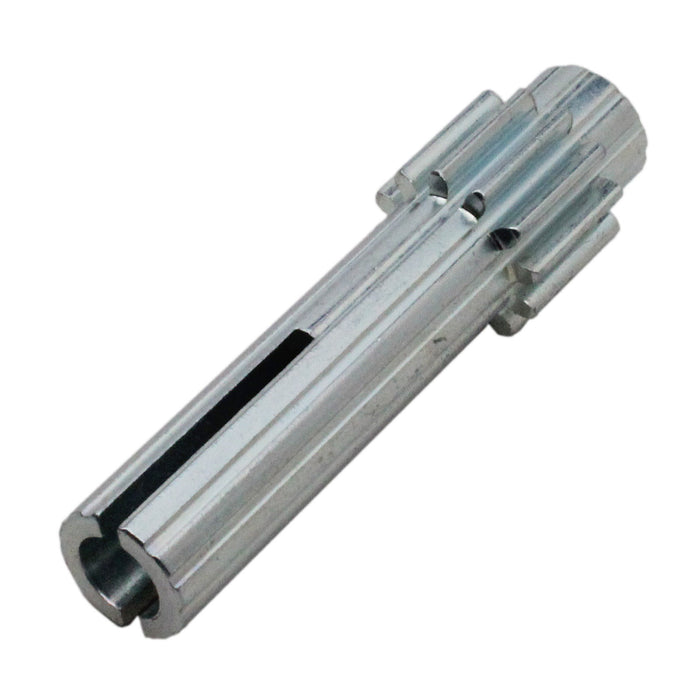

12 Tooth 20 DP 8 mm Round Bore Steel Shaft Gear for Swerve & Steer

by AndyMark
Sold out
$15.00 - $15.00
$15.00
$15.00
$15.00 - $15.00
$15.00
This gear is used as the CIM pinion in the Swerve & Steer
SKU am-3018a
  • Specifications
  • Documentation
    • Bore: 8 mm Round w/ keyway
    • Diametral Pitch: 20
    • Face Width: 0.532 in.
    • Material: 4140 Steel
    • Overall Length: 2.62 in.
    • Pitch Diameter: 0.6 in.
    • Pressure Angle: 14.5°
    • Teeth: 12
    • Weight: 0.135 lbs.

  • Layout Prints

    am-3018a 12T CIM Shaft Rev 3.PDF
