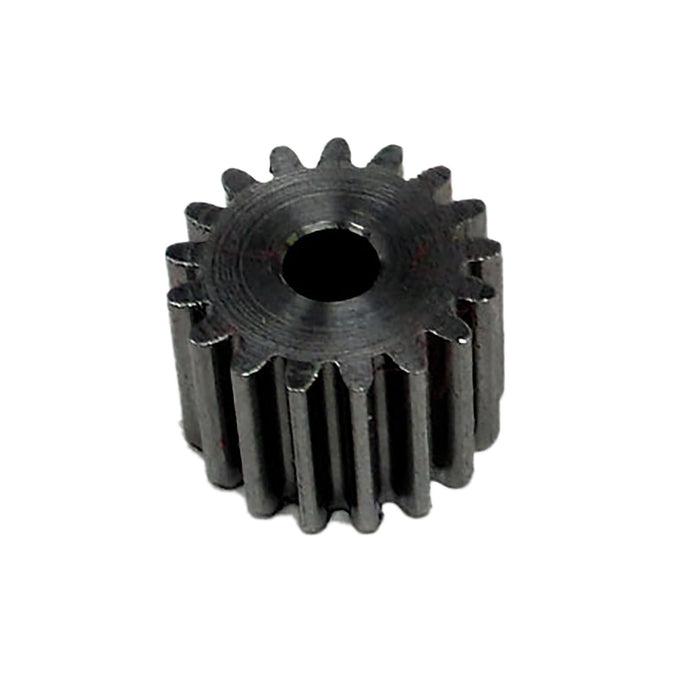

17 Tooth 0.6 Module 0.125 in. Round Bore Steel Gear

by AndyMark
Sold out
$8.00 - $8.00
$8.00
$8.00
$8.00 - $8.00
$8.00
SKU am-2068
  • Description
  • Specifications
  • Documentation
  • This gear smoothly presses onto the knurled shaft of a 9015 motor attaching to the shaft with only the friction press fit. No set screw, machine key, or collar clamp is needed. It is a slip fit (and thus will not transmit torque) on smooth shafts like the one on the Banebots 550 motor. This gear can be used for the the pinion gear in the PG71 and PG188 gearboxes if switching the motor to a 9015.
    • Bore: 0.125 in. Round
    • Material: 1215 Steel
    • Module: 0.6
    • Overall Thickness: 0.315 in.
    • Pitch Diameter: 10.2 mm
    • Pressure Angle: 20°
    • Teeth: 17
    • Weight: 0.1 lbs.

  • CAD Files

    am-2068 17 Tooth Pinion Gear for PG71, 0.125 Bore.STEP
