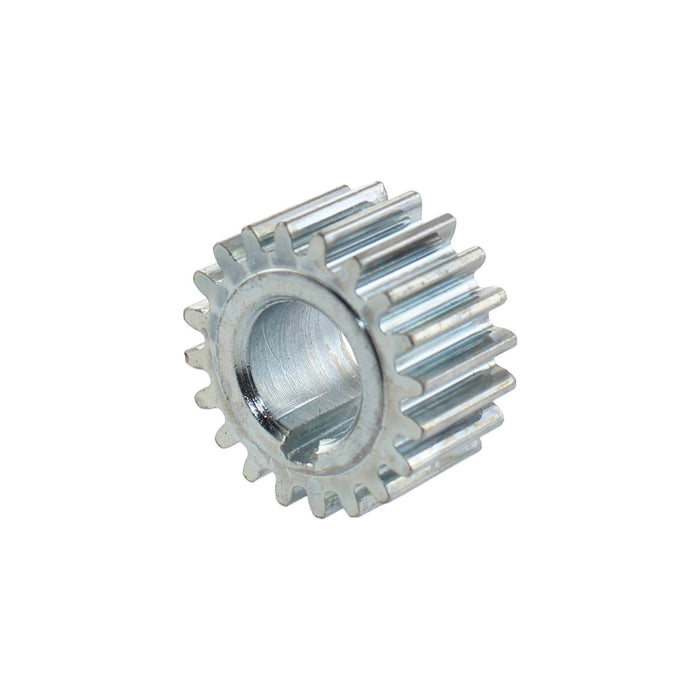

20 Tooth 20 DP 0.5 in. Round Bore Steel Gear - am-0186 - migrated

20 Tooth 20 DP 0.5 in. Round Bore Steel Gear

by AndyMark

Sold out

$14.00

$14.00 - $14.00

$14.00

$6.00

$6.00 - $6.00

$6.00

Description
Specifications
Documentation

This gear is used on the Super Shifter, as a standard gear for the final stage. It is paired with the 45 Tooth Gear 20 dp 1/2 Hex Bore 0.57 Wide.
- Bore: 0.5 in. Round w/ keyway
- Diametral Pitch: 20
- Face Width: 0.55 in.
- Finish: Zinc Plated
- Material: 4140 Steel
- Overall Width: 0.58 in.
- Pitch Diameter: 1 in.
- Pressure Angle: 14.5°
- Teeth: 20
- Weight: 0.2 lbs.
CAD Files
am-0186 20 Tooth Gear 20 dp 500 Key Bore.STEP
Layout Prints
am-0186 20T 500k.pdf

worked well in competition

works well, did not slip.

Works like it should

I’m not a FIRST member. I’m just a hobbyist that likes your products.
Your shipping costs are stupid ridiculous.
BTW USPS worked just fine.

'Review'

'5 stars'
