25 Series 16 Tooth 8 mm Bore Sprocket - am-0497 - migrated

25 Series 16 Tooth 8 mm Bore Sprocket

by AndyMark

Sold out

$11.00

$11.00 - $11.00

$11.00

$8.00

$8.00 - $8.00

$8.00

Description
Specifications
Documentation

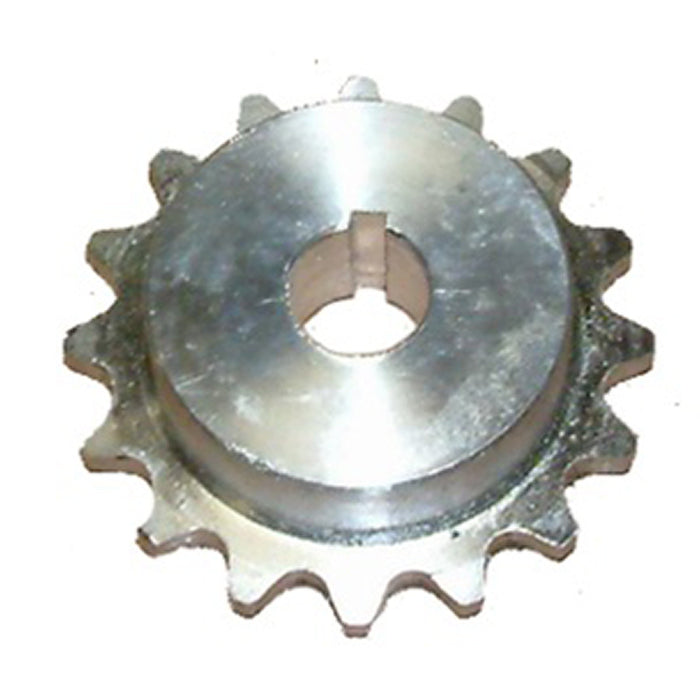

S25-16HA-313K, 7075 Aluminum Sprocket, 25 Series, 16 tooth, 313 Key Bore

Fits the 8 mm shaft of a 2.5 in. CIM Motor, with a 2 mm keyway.
- Bore: 0.313 in. with 2 mm keyway
- Material: 7075 Aluminum
- Outside Diameter: 1.39 in.
- Overall Hub And Sprocket Width: 0.405 in.
- Pitch Diameter: 1.29 in.
- Sprocket Width: 0.123 in.
- Teeth: 16
- Weight: 0.1 lbs.
Layout Prints
am-0497 s25-16h-313k REV2.PDF

Review

5 Stars

Nicely made.

This is a nicely made sprocket. I wish that I had bought two just to have one on hand.

Exactly what we needed!

This was exactly what we needed for one of our moving parts this year. It was a last minute/emergency decision, but shipping was quick and it worked perfectly!

Review

5 Stars

Sprockets

Perfectly :)
