25 Series 18 Tooth 10 mm DD Bore Sprocket

by AndyMark
Sold out
$9.00
$9.00 - $9.00
$9.00
$5.00
$5.00 - $5.00
$5.00
SKU am-3632
  • Description
  • Specifications
  • Documentation

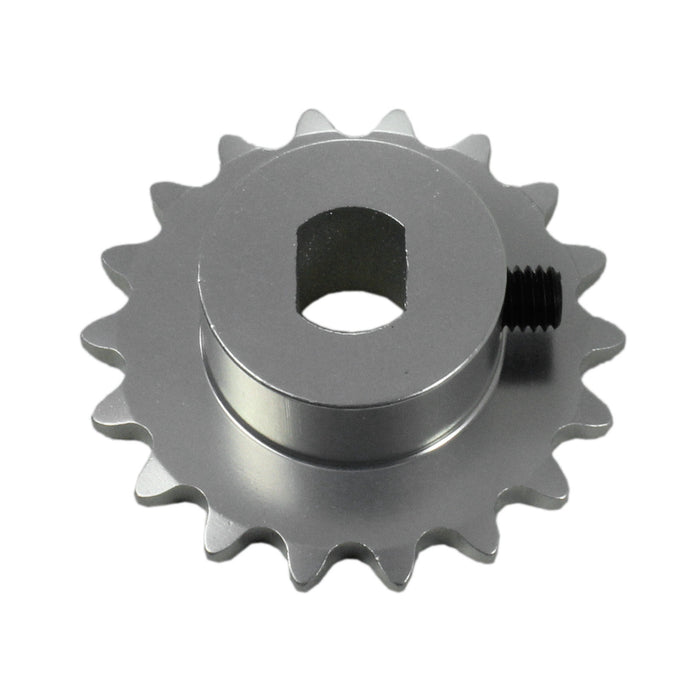

  • This is a 18 tooth sprocket with a 10 mm DD bore.

    Used for the original AndyMark Snowblower motor, if you still have one available, this bore also fits on the MY1020 motor style shaft used in many electric scooter motors.

    • Bore: 10 mm DD
    • Hub Diameter: 0.850 in.
    • Material: 7075-T6 Aluminum
    • Outside Diameter: 1.568 in.
    • Overall Depth: 0.485 in.
    • Pitch Diameter: 1.44 in.
    • Series: #25
    • Set Screw: 10-32 0.25 in. cup point screw included
    • Teeth: 18
    • Thickness: 0.1 in.
    • Weight: 0.05

  • CAD Files

    am-3632 - S25-18HA-10mm_DD.STEP

    Layout Prints

    am-3632 - S25-18HA-10mm_DD.PDF

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
AO
Used for an dirt ebike front sprocket, only had...

Used for an dirt ebike front sprocket, only had to shave down the fat part of the hub to make it work. Seems plenty strong for my 1800w 48v system
