25 Series 40 Tooth Ninja Star Sprocket - am-3285 - migrated

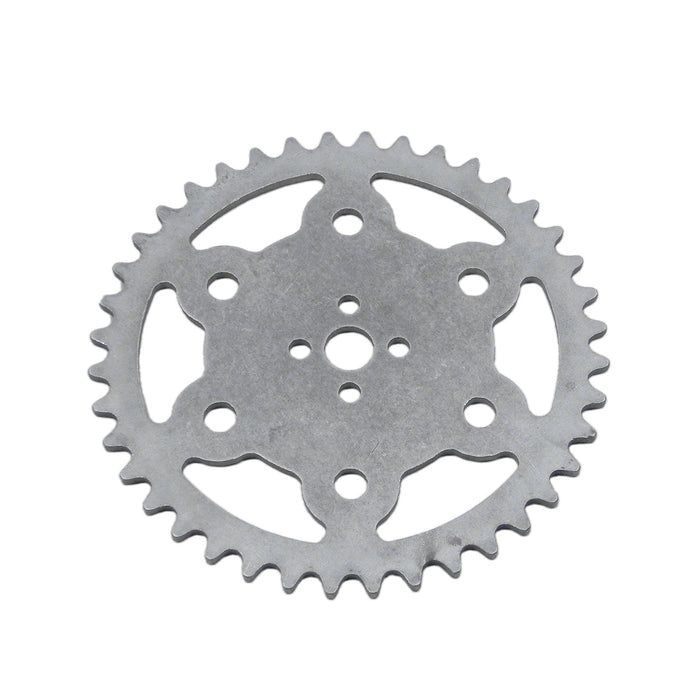

25 Series 40 Tooth Ninja Star Sprocket

by AndyMark
Sold out
$10.00 - $10.00
$10.00
$10.00
$10.00 - $10.00
$10.00
SKU am-3285
  • Description
  • Specifications
  • Documentation
  • The Ninja Star Sprocket is a series of sprockets aimed at giving FTC more options for moving drive systems and mechanisms. This 25 series sprocket features a 16 mm circle of 0.14 in. holes, to work with existing market hardware.
    • Bolt Circle: 0.14 in. Holes on 0.630 in. [16 mm] Circle AND 0.2 in. Holes on 1.875 in. Circle
    • Bore Diameter: 0.312 in. - 0.321 in.
    • Material: 6061 Aluminum
    • Number of Teeth: 40
    • Outside Diameter: 3.327 in.
    • Pitch Diameter: 3.19 in.
    • Series: #25
    • Thickness: 0.088 in. - 0.098 in.
    • Weight: 0.05 lbs.

  • CAD Files

    am-3285 40t Ninja Star Sprocket.STEP

    Layout Prints

    am-3285 40t Ninja Star Sprocket.PDF
