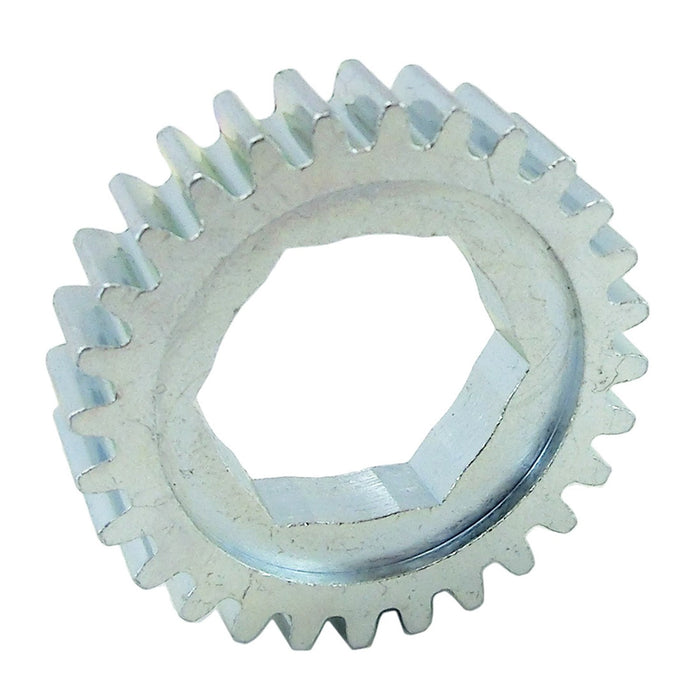

28 Tooth 20 DP 0.75 in. Hex Bore Steel Gear

by AndyMark
Sold out
$12.50 - $12.50
$12.50
$12.50
$12.50 - $12.50
$12.50
SKU am-2346
  • Description
  • Specifications

  • Introducing FlexHub, designed by engineers from iR3 Creative Engineering, from Orlando, Florida. FlexHub is a modular gear & hub solution from iR3 Creative. The concept is pretty simple. There is a hub, there is a gear, there are two retaining rings. Put them together into your assembly. If the gear ratio / shaft size / output / whatever isn’t working rinse and repeat with a new hub or gear. Check out the FlexHub Flyer

    Hub Specifications (Common dimensions among all FlexHub Hubs):
    • Hub Width: 0.400-0.410 inch
    • Hub Material: 12L14 steel
    • Hub Outside Geometry: 3/4 inch hex
    • General Info: All Flex Hubs fit all Flex Hub gears
    Part # Type Bore CAD Weight Price
    am-2427 Hub 3/8 Hex 0.376-0.378 inch hex STP 0.04 lbs $9.00
    am-2428 Hub 1/2 Hex 0.501-0.503 inch hex STP 0.03 lbs $9.00
    am-2429 Hub 3/8 Keyed 0.376-0.378 inch w/ 3/32 keyway STP 0.04 lbs $9.00
    am-2430 Hub 1/2 Keyed 0.501-0.503 inch w/ 1/8 keyway STP 0.03 lbs $9.00
    am-2431 Hub 10mm Keyed 0.394-0.396 inch w/ 4mm keyway STP 0.04 lbs $9.00
    am-2432 Hub 8mm Keyed 0.315-0.317 inch w/ 2mm keyway STP 0.04 lbs $9.00


    Part # Type # of Teeth Pitch Diameter CAD Weight Price
    am-2346 Gear 28 1.40 inch STP 0.09 lbs $12.50
    am-2347 Gear 32 1.60 inch STP 0.13 lbs $13.00
    am-2348 Gear 35 1.75 inch STP 0.17 lbs $13.50
    am-2349 Gear 40 2.00 inch STP 0.25 lbs $14.50
    am-2350 Gear 45 2.25 inch STP 0.33 lbs $15.00
    am-2351 Gear 48 2.40 inch STP 0.38 lbs $16.00
    am-2352 Gear 50 2.50 inch STP 0.42 lbs $16.00
    am-2353 Gear 56 2.80 inch STP 0.54 lbs $17.00


    Other Modulox Parts:



    Part # Description CAD Weight Price
    am-2415 22 tooth, 25 series, 7075 Aluminum Sprocket STP 0.03 lbs $16.00
    am-2444 PG Block for Modulox 0.02 lbs $10.00
    am-2445 FlexHub Flange 0.09 lbs $9.00
    • Bore: 0.75 in. (3/4) Hex
    • Diametral Pitch: 20
    • Hub Outside Geometry: 0.75 in. Hex
    • Hub Width: 0.4 - 0.41 in.
    • Material: 12L14 Steel
    • Pressure Angle: 14.5°
    • Teeth: 28
    • Weight: 0.15 lbs.
