5 mm Hex XL Double Boss Nub w/Set Screw

by AndyMark
Sold out
$17.00
$17.00 - $17.00
$17.00
$11.00
$11.00 - $11.00
$11.00
SKU am-3671
  • Description
  • Specifications
  • Documentation

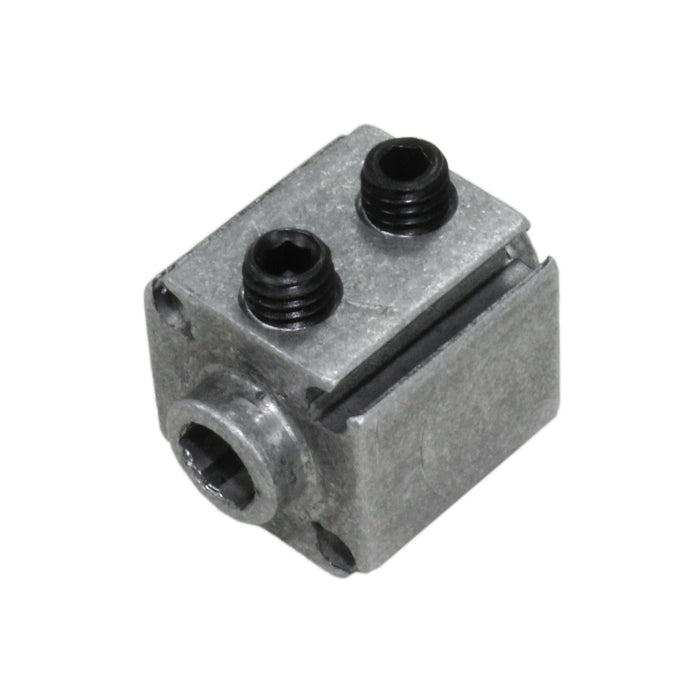

  • Nubs are hubs intended to connect motion components to spinning shafts, like sprockets gears, pulleys and wheels. This Nub features a round boss on both sides with a 5 mm hex bore in the middle. This bore allows for pairing of REV 5 mm hex components with other motion parts that interface with Nubs.

    The four mounting holes on these nubs are sized at 0.128 in. diameter, with the intention of accepting a #6-32 threaded screw. They are not tapped, but can be tapped by most machine screws once they are driven in the first time.

    Attention: The 5 mm hex bore is not timed to any particular face of the Nub. The hexs on various Nubs are not guaranteed to rotationally line up with other Nubs.
    • Bore: 5 mm Hex
    • Height: 0.63 in. [16 mm]
    • Length: 0.63 in. [16 mm]
    • Material: 6061-T6 Aluminum
    • Overall Depth: 0.866 in. [22 mm]
    • Set Screw: Holes sized for 10-32 Set Screw (Set Screw Included)
    • Weight: 0.03 lbs.

  • CAD Files

    am-3671 5mm XL Double Boss Hex Nub with Set Screw REV2.STEP

    Layout Prints

    am-3671 Double Boss XL 5mm Hex Nub with Set Screw REV2.PDF
