8 in. Aluminum Dualie Omni Wheel w/ 1/2 in. bearings - am-0560 - migrated

8 in. Aluminum Dualie Omni Wheel w/ 1/2 in. bearings

by AndyMark
$120.00 - $120.00
$120.00
$120.00
$120.00 - $120.00
$120.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

This product is currently unavailable for purchase

SKU am-0560
  • Description
  • Specifications
  • Documentation

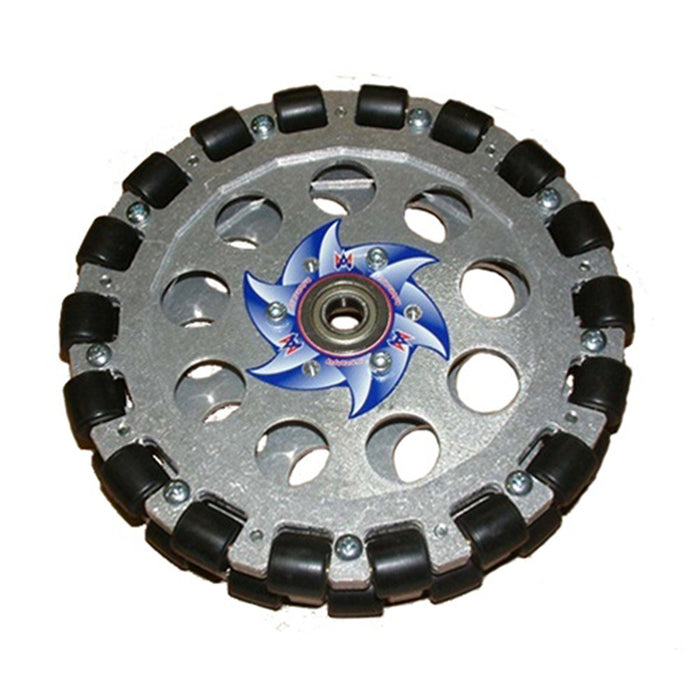

  • 8 in. Aluminum Dualie Omni Wheel with 1/2 in. Bearings

    These wheels combine the best features of the AndyMark Trick Wheels with the AndyMark plastic omni wheels. They are light and durable. They will bend under a severe impact, but can be easily repaired. The center bore is sized to receive a 1+1/8 in. diameter flange bearing (FR8ZZ or am-0573) in a press fit manner.


    Included Hardware: Usage:
    With Axle and Hub:
    • If you wish to drive this wheel with an Axle and Hub, you can pick your hub by fitting any of the AndyMark hubs (except the Small DD Globe Hub) to this wheel. Hubs are NOT included in the price of the wheel. If this is your choice, then no bearing is needed.
    With Sprocket:
    • If you wish to drive this wheel with a sprocket, then the sprocket needs to be attached to the side of the wheel, and two ball bearings need to be pressed into the wheel (one on each side). The ball bearing must have a 1.125 in. od. For a 1/2 in. id, use am-0030. For a 3/8 in. id, use am-0573. The sprocket needs to be spaced out in order for the chain to miss the side of the wheels.
    With Bearings:
    • Two ball bearings need to be pressed into the wheel (one on each side). The ball bearing must have a 1.125 in. od. For a 1/2 in. id, use am-0030. For a 3/8 in. id, use am-0573.
    Made in the USA:
    Bearings and screws were not made in the USA. All other components were designed, manufactured and assembled in the United States of America.
    • Bolt Pattern: 6 hole on a 1.875 in. diameter bolt circle
    • Bore: 1.124 in. Round
    • Diameter: 8 in.
    • Load Capacity: 100 lbs.
    • Material: Aluminum
    • Roller Axle: Steel Dowel Pin
    • Roller Durometer: 80A
    • Rollers: 36
    • Weight: 2.3 lbs.
    • Width Across Middle: 1.05 in.

  • CAD Files

    am-0560 8in Dual Aluminum Omni 500 Bearing.STEP

    Guides

    am-0560 8-inch Aluminum Dualie Omni Wheel Assembly Instructions AM-0560.pdf
