8 in. SmoothGrip Wheel w/ 0.375 in. Bearings - am-0569 - migrated

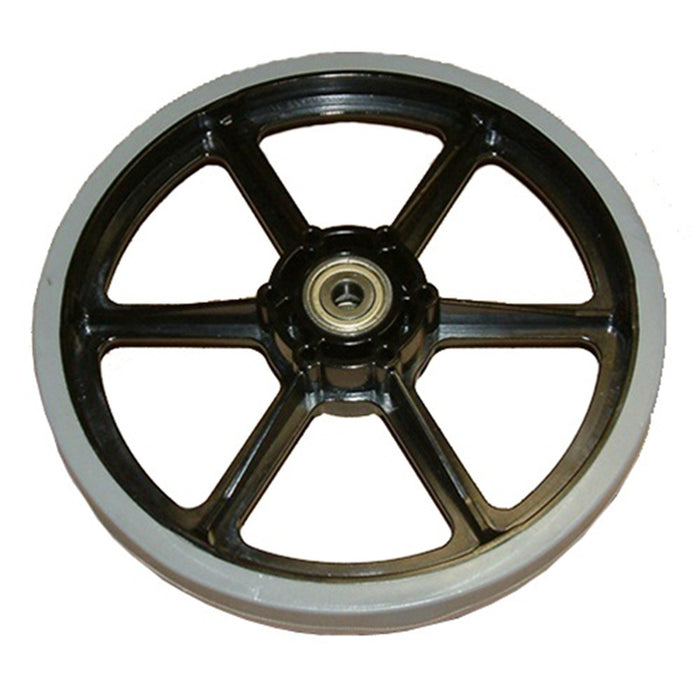

8 in. SmoothGrip Wheel w/ 0.375 in. Bearings

by AndyMark
Sold out
$20.00 - $20.00
$20.00
$20.00
$20.00 - $20.00
$20.00
SKU am-0569
  • Description
  • Specifications
  • This is a 2010 FIRST Wheel, provided in the FRC Kit of Parts. Two 3/8 in. bore bearings (am-0209) are included.


    Usage:
    Use #10-24x3/4 thread forming screws to attach sprockets or hubs to this wheel. Three (3) screws are sufficient for each wheel. With Sprocket: With Bearings:
    • To press bearings into this wheel (for a free spinning wheel or for use with a sprocket), two ball bearings need to be pressed into the wheel (one on each side). The ball bearing must have a 1.125 in. od. For a 1/2 in. id, use am-0029. For a 3/8 in. id, use am-0209.
    Made in the USA:
    Bearings were not made in the USA. All other components were designed, manufactured and assembled in the United States of America.
    • Bolt Pattern: Six holes (0.17 in. diameter) on a 1.875 in. diameter bolt circle
    • Bore: 0.375 in. Bearing Bore
    • CoF: 1.0 static (on tight pile carpet)
    • Diameter: 8 in.
    • Material: Black Polycarbonate
    • Weight: 0.85 lbs.
