Short 1/2 in. Hex Aluminum Output Shaft with Magnet for Toughbox Series - am-0397a - migrated

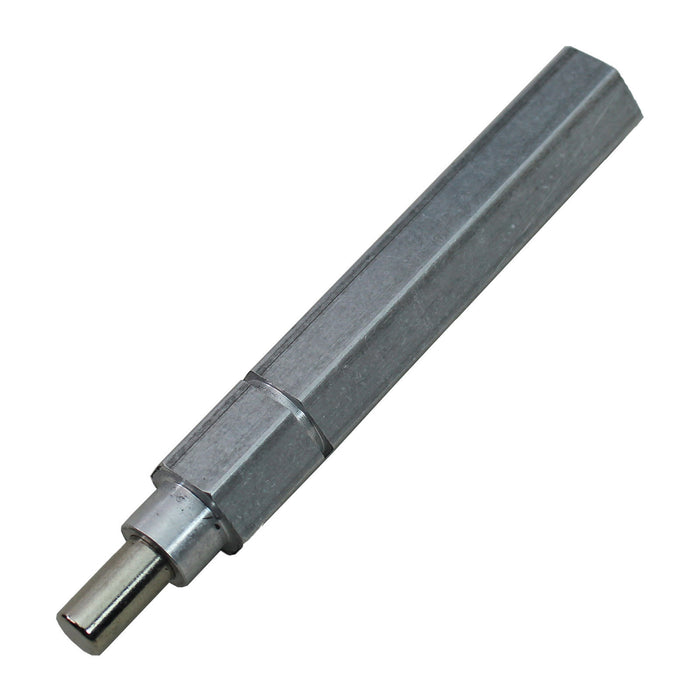

Short 1/2 in. Hex Aluminum Output Shaft with Magnet for Toughbox Series

by AndyMark

Sold out

$18.00 - $18.00

$18.00

$18.00

$18.00 - $18.00

$18.00

Description
Specifications
Documentation

This is an optional short aluminum output shaft for the Toughbox® series gearboxes. This shaft includes a pre-installed magnet designed specifically with the E4T OEM Miniature Optical Encoder (am-3132) and SRX Magnetic Encoder (am-3445) encoder in mind. This shaft has replaced am-0397.

Usage:
If using this shaft with the SRX Magnetic Encoder (am-3445), the SRX Magnetic Encoder Mounting Hardware Kit (am-3565) will be needed. The hardware allows for proper spacing of the encoder from the shaft magnet on Toughbox® Series Gearboxes and the EVO Shifter.
- Length: 3.13 in.
- Material: 7075 Aluminum
- Pitch: 0.25 in.
- Size: #25
- Weight: 0.08 lbs.
CAD Files
am-0397a Toughbox Hex Output Shaft REV3.STEP
Layout Prints
am-0397a Toughbox Hex Output Shaft with Magnet.PDF
