Snow Blower Motor - am-2235 - migrated

Snow Blower Motor

by AndyMark
Sold out
$39.00 - $39.00
$39.00
$39.00
$39.00 - $39.00
$39.00
SKU am-2235
  • Description
  • Specifications
  • Documentation

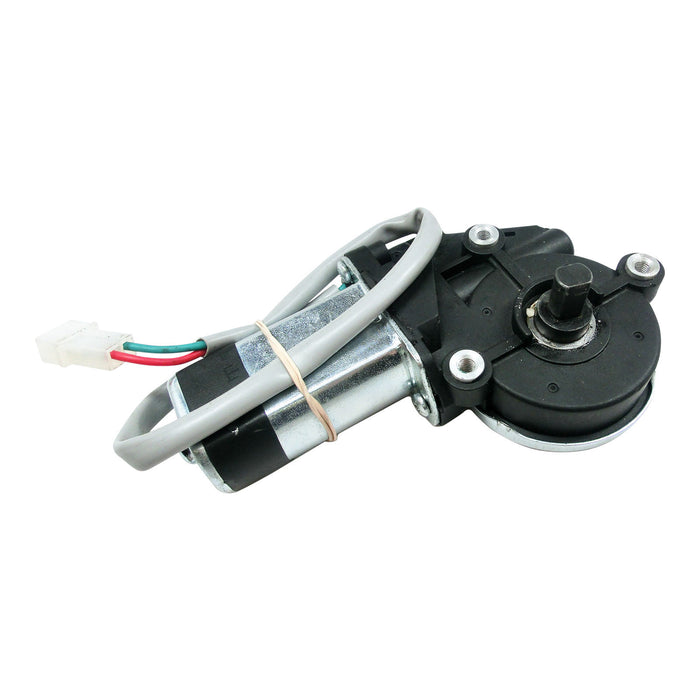

  • This motor and gearbox combo comes from a snow blower assembly. This setup is perfect for low wattage requirements on robots like indexers. Use this 10mm DD Hub to drive something with this motor (not included). We also have sprockets which fit on this motor.
    • Free Current: 5 A
    • Maximum Power: 20 W
    • Mounting Hole Size: 10-32
    • No Load RPM: 100 RPM
    • Stall Current: 24 A
    • Stall Torque: 5.833 ft-lb [7.91 N-m]
    • Voltage: 12 V
    • Weight: 1.11 lbs.

  • CAD Files

    am-2235 Snow Blower Motor.STEP

    Layout Prints

    am-2235 SnowblowerMotor.pdf

Customer Reviews

Based on 13 reviews
69%
(9)
8%
(1)
8%
(1)
8%
(1)
8%
(1)
P
PG from Yaphank
Review

5 Stars

m
mh from anoka
Snow Blower Motor (am-2235

works great

C
CR from Cassopolis
'Fragile Plastic Gear, No Spare Gears Available.'

Be careful in your application. The unit uses a steel worm and a plastic pinion gear. The ratio is self-locking, so reverse loading tends to strip the teeth out of the plastic gear. The plastic gear is easily replaceable by removing the silver colored metal cover, but you need to buy an entire gearbox to obtain one, since spare gears are unavailable from AndyMark during the 2018 season.

True: Spare gears for this particular motor are not available.

B
BO from Escondido
Good Service

As always, thanks for your prompt and effective processing of my order!

D
DK from Umea
Nice Motor and super seller..=)

Very happy with the motor and with Andymark
5 Star all the way..=)
