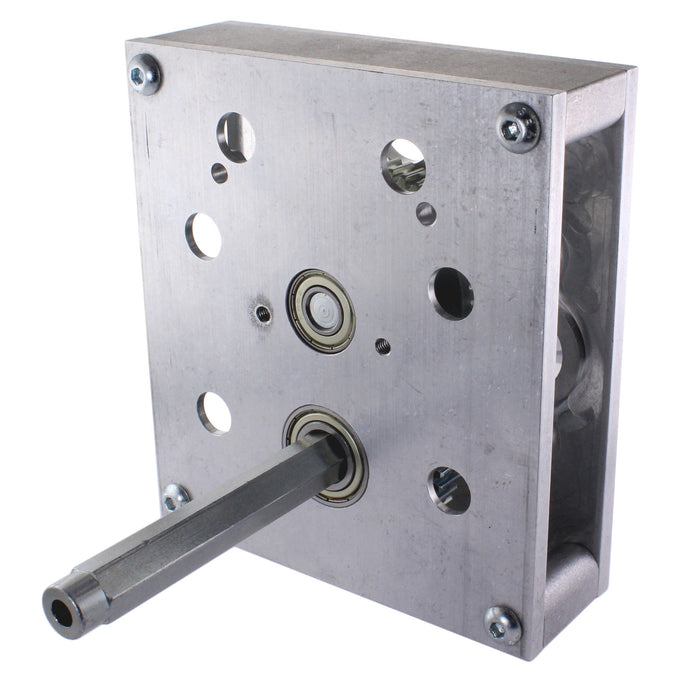

The Super Sonic Slim Gearbox is a line of single-speed gearboxes with weight-relieved aluminum shifter plates.
Choose a Output Shaft
Choose a Pinion
Choose a Ratio
SKU
  • Description
  • Specifications
  • Documentation

  • The Super Sonic Slim Gearbox is a line of single-speed gearboxes based on our last generation of weight relieved aluminum shifter plates. This offers a powerful, lightweight solution to create robust drive trains for competition robots. The Super Sonic Slim uses a combination of AndyMark Product lines including the Super Sonic Shifter, EVO, and ToughBox. Weight relieved versions of "Standard" Steel gears are used to make ratio swaps easy and painless as well as maintain compatibility with other gears that teams may already have.

    Choose your configuration of the Super Sonic Slim above, it accepts up to 3 NEO / CIM Motors or Falcon 500 motors as inputs and allows you to pick between 3 different lengths of output shaft and 6 different ratio options.

    This gearbox is shipped in kit form, not assembled with hardware to accept the selected motors. Please note motors are not included with these gearboxes.

    Additional Encoder: An optional Encoder can be purchased and added to this gearbox.

    Ratios:


    If there is no table above this line please email support@andymark.com

    Product Usage:
    All AndyMark gearboxes require grease for proper operation and long life. We suggest using our red tacky grease, am-2768. We also encourage that the user powers the gearbox continuously for 30 minutes without grease to allow the gear teeth to wear in. While we do design with short run times in mind, this 'run in' period for smooth gearbox operation, is recommended. Once this is completed, thoroughly grease the gear teeth periodically to ensure smooth operation.
    • Weight: ~ 2.5 lbs. Depending On Options

  • Guides

    am-4855 Super Sonic Shifter Assembly Guide.pdf
