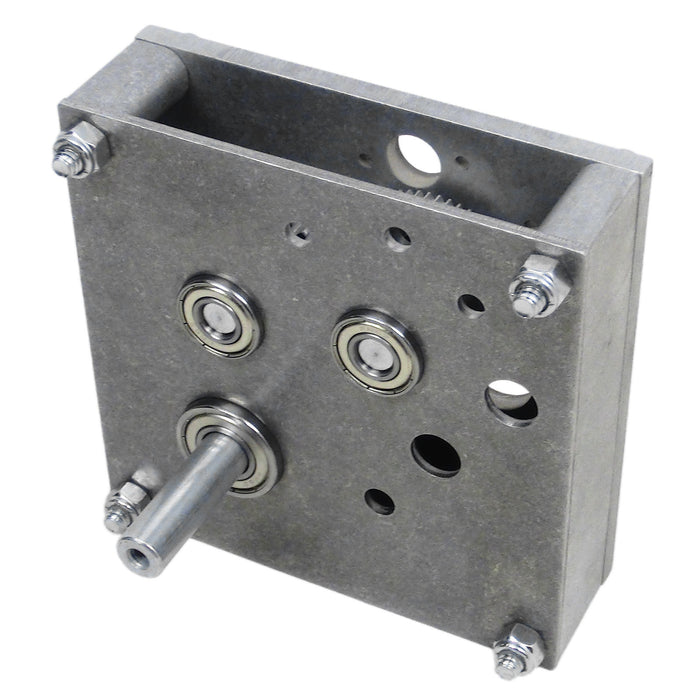

TB3, Toughbox Gearbox 3 Stage

Name: TB3, Toughbox Gearbox 3 Stage
Brand: AndyMark
SKU: am-0977
Price: 69.0 USD
Availability: OutOfStock
Rating: 4.67 (3 reviews)

by AndyMark

Sold out

$165.00

$165.00 - $165.00

$165.00

$69.00

$69.00 - $69.00

$69.00

Description
Specifications
Documentation

Product Usage:
All AndyMark gearboxes require grease for proper operation and long life. We suggest using our red tacky grease, am-2768. We also encourage that the user powers the gearbox continuously for 30 minutes without grease to allow the gear teeth to wear in. While we do design with short run times in mind, this 'run in' period for smooth gearbox operation, is recommended. Once this is completed, thoroughly grease the gear teeth periodically to ensure smooth operation.

This is a three stage version of our popular Toughbox gearbox. This version gives you more reduction within this standard Toughbox profile.

This is a THREE stage Toughbox, with an much larger overall ratio compared to the standard Toughbox. This third stage uses a 60-tooth, 32 dp gear riding on a 3/8 in. hex shaft. This gear can be driven by a 15 tooth pinion gear on a CIM Motor, or a 15 tooth pinion gear on a smaller, 500-series motor. The additional stage provides a standard ratio of 51:1. After the additional stage, the same standard Toughbox gears are used within the TB3. This means that some of the optional Toughbox gears can be used within the TB3, so that overall reductions of 43:1, 34:1, and 24:1 can be attained.

This gearbox is designed for having two 9015 motors, OR one CIM motor inputs.

Note: This gearbox ships as an un-assembled kit of parts.

Gear Ratios Options:

Ratio	Standard or Optional	Motor Gear	32dp Lg. Gear	32dp Sm. Gear	Lg. Cluster Gear	Sm. Cluster Gear	Lg. Output Gear
51:1	Standard	15 tooth	60 tooth	14 tooth	50 tooth	14 tooth	50 tooth
42.8:1	Optional	15 tooth	60 tooth	14 tooth	50 tooth	16 tooth*	48 tooth*
33.8:1	Optional	15 tooth	60 tooth	14 tooth	50 tooth	19 tooth*	45 tooth*

* - These are optional gears and are not included in the standard am-0977 product. In order to attain these gear ratios, these gears will need to be purchased individually.

Included Hardware:

One - Motor Plate
One - Shaft Plate
One - 50t 20dp Large Output Gear
Two - 14t 20dp Small Cluster Gears
One - 50t 20dp Large Cluster Gear
One - Steel Gear, 15 tooth, 32DP 8mm Bore (am-3482)
Two - Steel Gear, 15 tooth, 32DP 0.125 in. Bore (am-0040)
Four - M3x10mm SHCS (used for 550 mounting)
Four - 10-32 x 5/8 in. SHCS (used for CIM motor mounting)
One - 60t 32dp Output Gear
Five - 3/8 in. id flanged Ball Bearings
One - 1/2 in. id flanged Ball Bearing
Four - 1/4-20 Nylock Nuts
Four - 1/4-20 x 2 SHCS
One - External Klipring for 1/2 in. shaft
Two - Toughbox Small Hex Shafts
One - Toughbox Output Shaft
One - Nylon Spacer
Two - ToughBox Gearbox Spacer

- Input: One CIM motor OR (one or two Fisher Price motors)
- Material: Steel
- Output: 1/2 in. Round, Keyed, 4140 Steel
- Ratio: 33.8:1, 42.8:1, 51:1
- Weight: 2.75 lbs.
CAD Files
am-0977 TB3, 3 stage toughbox.STEP
Layout Prints
am-0977 TB3, 3 Stage Toughbox r2.PDF
Guides
am-0977 TB3 Box Assembly Instructions.pdf

Tough box skirt.

I have been using the tough boxes for several years.
They work well. Th only thing that I don't like is that, on the newer boxes,the aluminum shroud doesn't go all the way around. This means that dust can get into thr gears.

Review

really like the 51:1 gear ratio.

'Great Idea'

'This makes tons of sense - now we don't need to use two gearboxes to make use of RS-550 motors. I am SUPER excited that the 32 DP gears are available separately for custom gearboxes with RS-550 / FP motors, and I know that we will buy some.'
