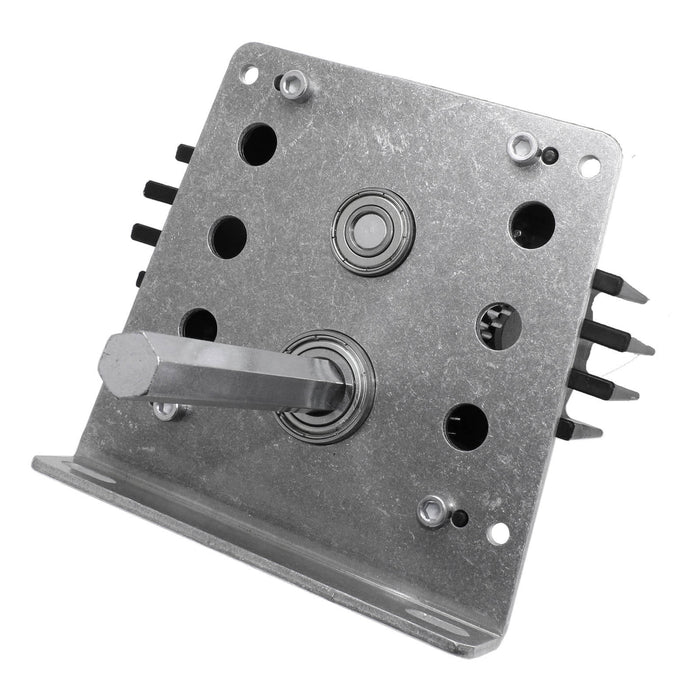

Toughbox Mini Options - Angled - 10.71:1

• One - Toughbox Mini Housing
• One - Toughbox Output Shaft (Extra shaft for no plate version)
• One - Small Cluster Shaft
• One - 3/8 in. Flanged Shielded Bearing
• One - 1/2 in. Flanged Shielded Bearing
• Two - 3/8 in. Shielded Bearing
• One - Klipring
• Four - 10-32 x 3/4 in. SHCS (am-1047)
• Four - 10-32 Nylock Nuts
• One - 1/4 in. Washer (am-1027)
• One - 1/4-20 x 1/2 in. Button Head Cap Screw
• Four - 5/16 ID Washers
• Two - 8mm ID Retainer Clip
• Two - 2x2x10mm Machine Key
• One - 1/8 x 1/8 x 0.7 Machine Key
• Grease Packet

• Angled Plate Versions:
  • One - Angled Shaft Plate
• Flat Plate Versions:
  • One - Flat Shaft Plate
• NoPlate Versions:
  • One - Toughbox MIni Long Hex Output Shaft
  • One - 1/2 in. Hex Bore, Flanged, Heavy Duty Inner Race Shielded Ball Bearing
• 5.95:1 Ratio versions:
  • One - Nylon spacer, to be placed next to the 24T gear

• Designed for 2 or 1 motor inputs
• Use CIM motors or BaneBot (57 Sport or CIM Sport) Gearboxes or a combination of both

• Long Output Shaft is available, which is 3.5 inches longer than the standard Output Shaft.
• Hex Wheel Shaft provides a hex output shaft, a FR8ZZ-Hex bearing must also be purchased to use this shaft.
• Hex Long Shaft provides a longer hex output shaft, a FR8ZZ-Hex bearing must also be purchased to use this shaft.

Weight Reduction with Optional Parts:

• Aluminum Large Output Gear can replace the standard steel 50 Tooth Large Output Gear.
