Order your custom colored compliant wheels while supplies last! These are in stock and shipping now, but inventory is limited.

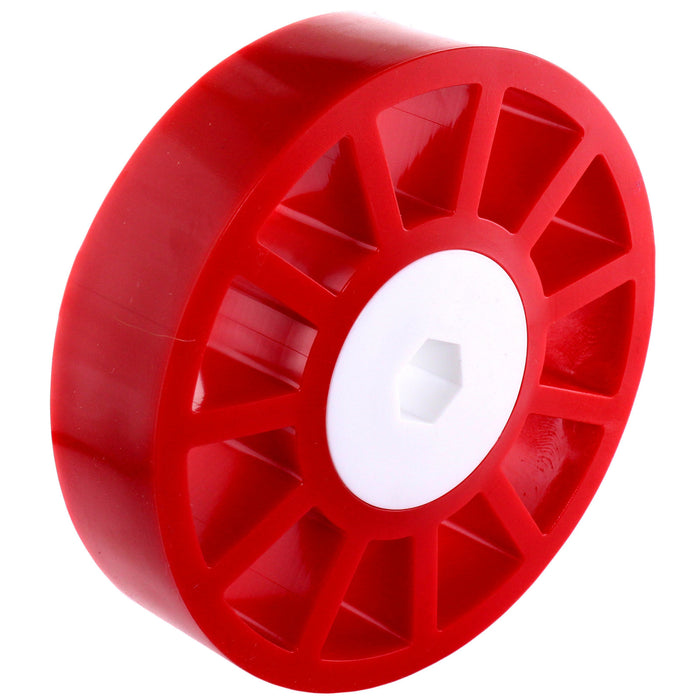

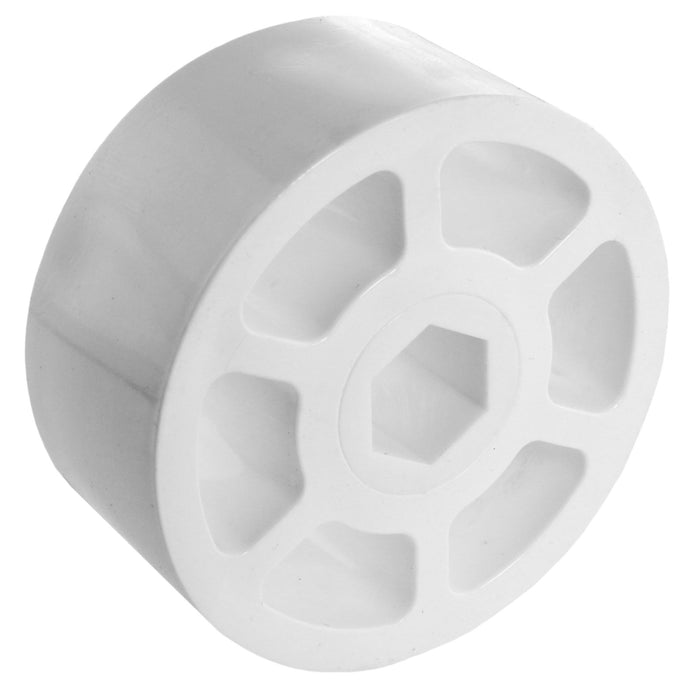

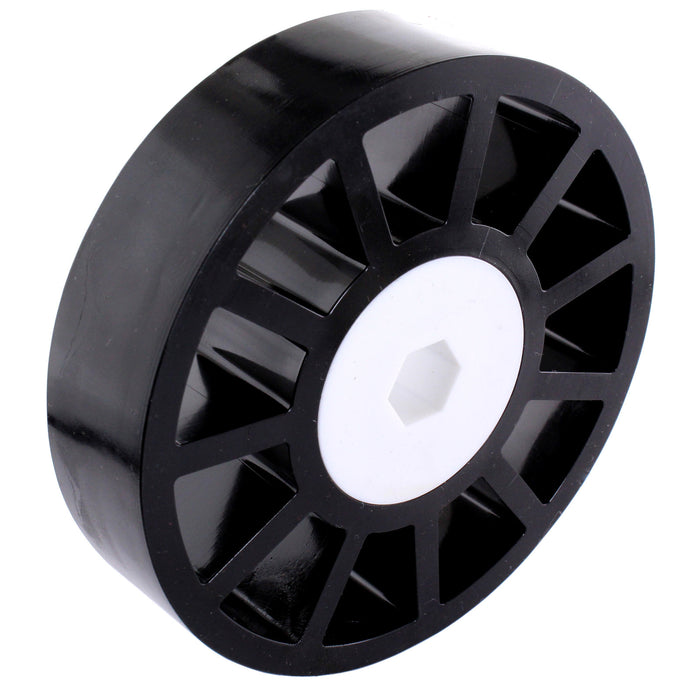

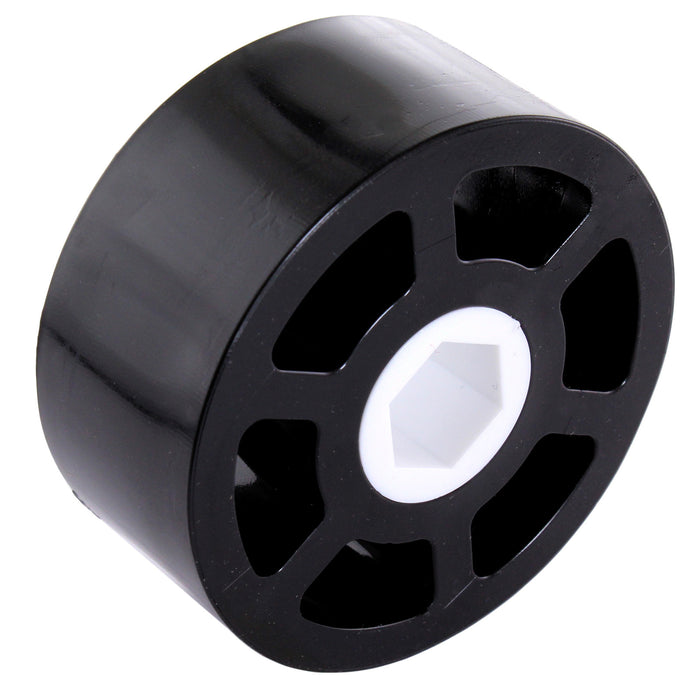

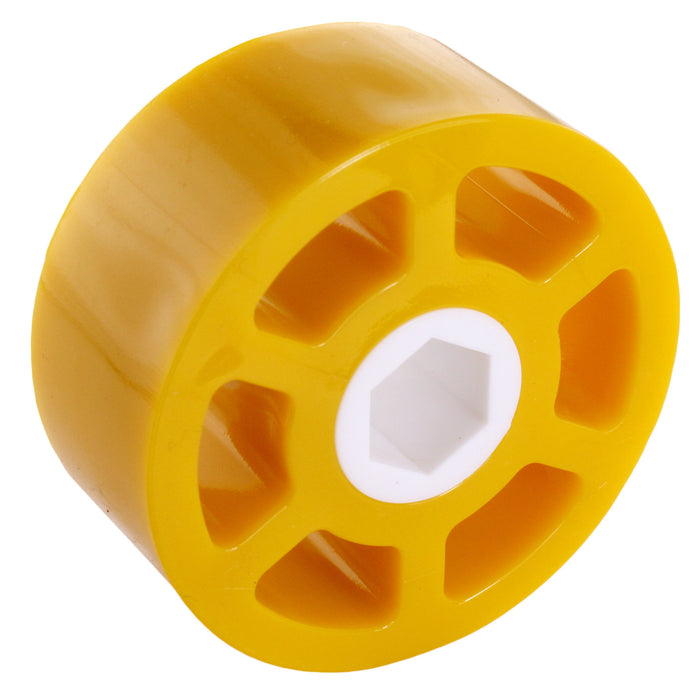

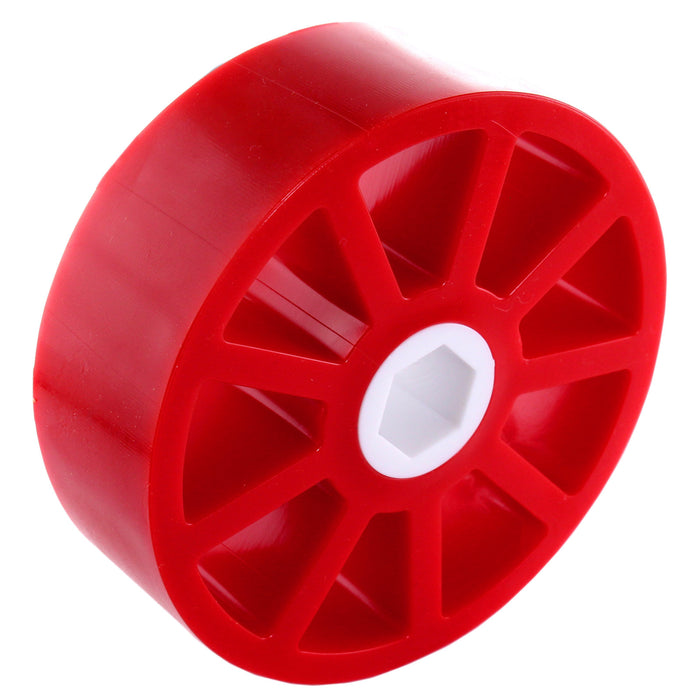

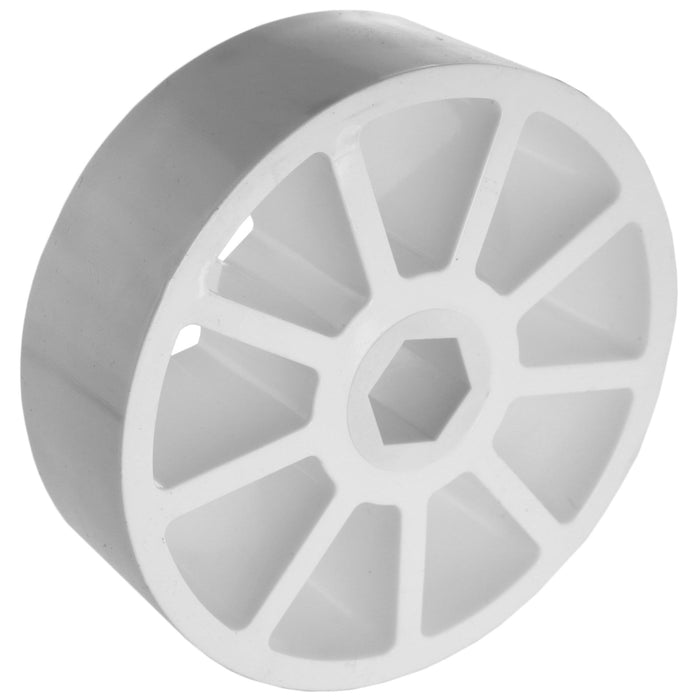

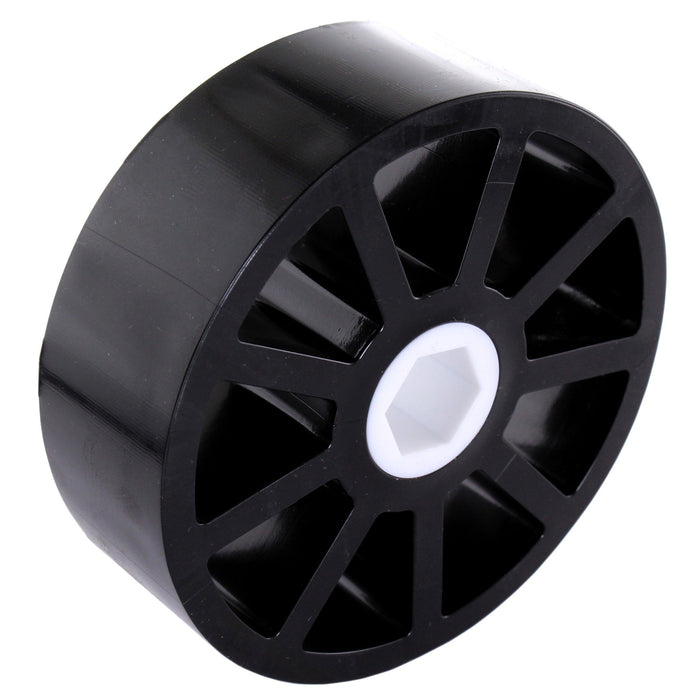

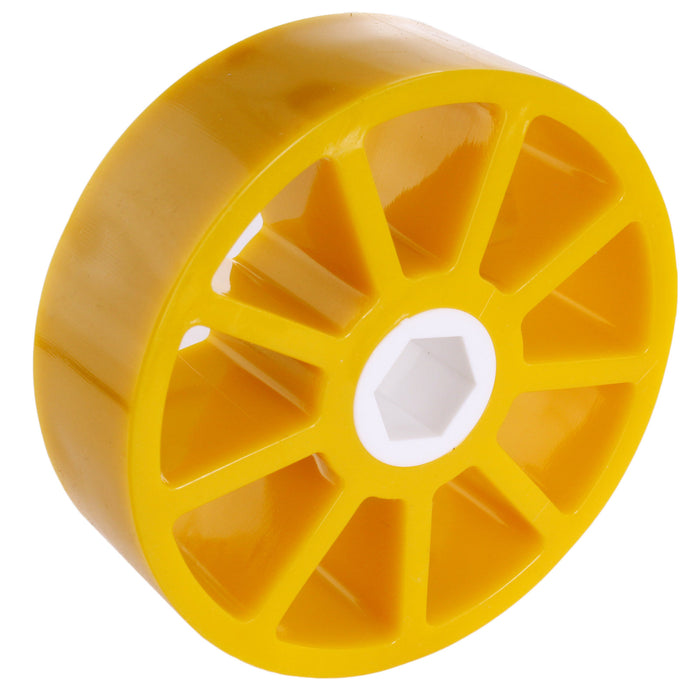

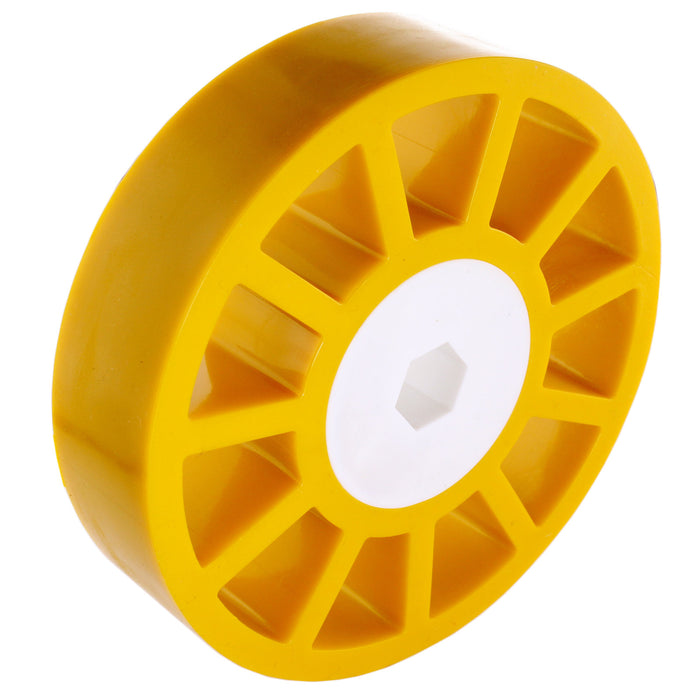

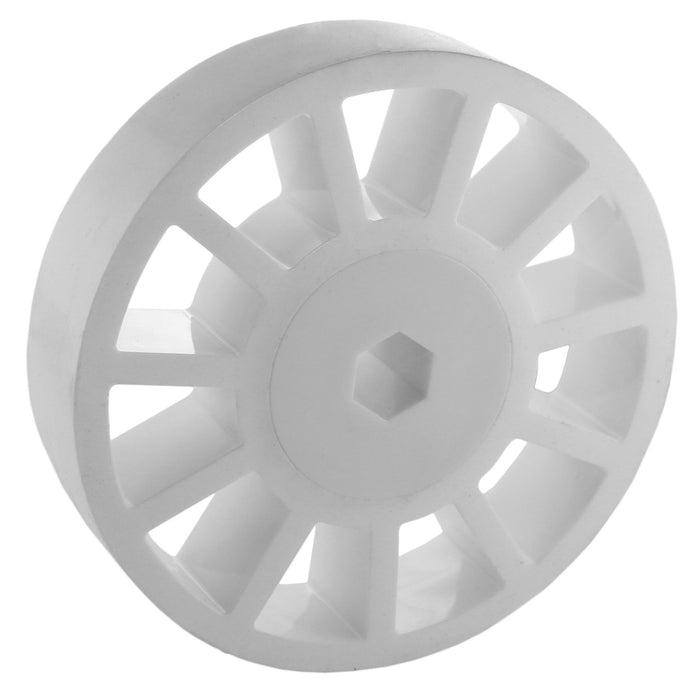

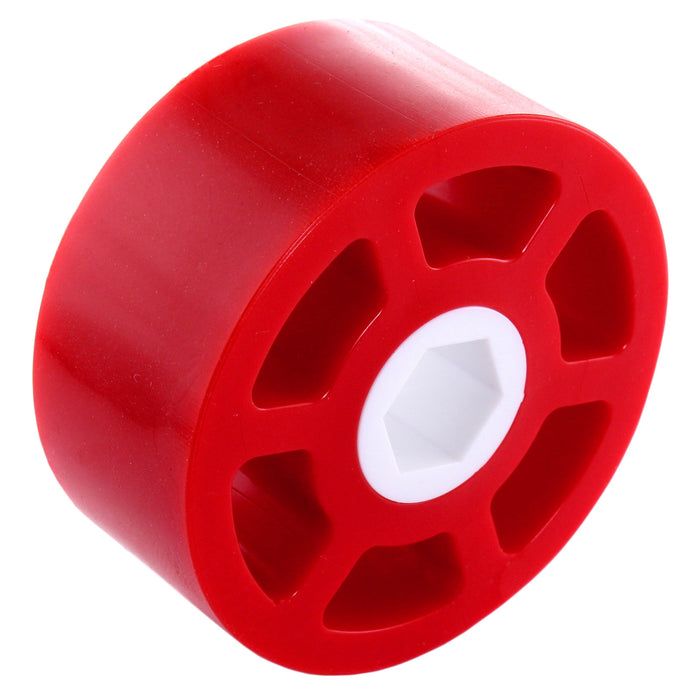

The greatest grippy wheels for competition robots are available in small batches of your favorite colors. All wheels, regardless of color and diameter, have a durometer of 35A and use white hubs to differentiate them as custom. This is equivalent to the typically green wheels. All other properties are the same as normal such as expansion rates and maximum speeds.
Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. -
- Bore: 0.5 in. Hex
- Color: Red, Black, White, Yellow
- Core Material: Polycarbonate
- Diameter: 2.25 in., 3 in., 4 in.
- Durometer: 35A
- Tread Material: TPU
- Weight: 0.08 lbs. ea for 2.25 in., 0.12 lbs. ea for 3 in., 0.3 lbs. ea for 4 in.
- Width: 1 in.
-
CAD Files
am-3949 2.25IN 500Hex HD Compliant Wheel.STEP
am-3945 3IN 500Hex Compliant Wheel REV 3.STEP
am-3480 4IN 500Hex Bore Compliant Wheel REV2.STEPLayout Prints
am-3949 2.25IN 500Hex HD Compliant Wheel REV3.PDF
am-3945 3IN 500Hex Compliant Wheel REV3.PDF
am-3480 4IN 500Hex Compliant Wheel REV3.PDFAdditional Files
am-3480 4 inch Compliant Wheel Expansion.pdf
