17 Tooth 0.6 Module 5 mm Round Bore Steel Gear - am-2487 - migrated

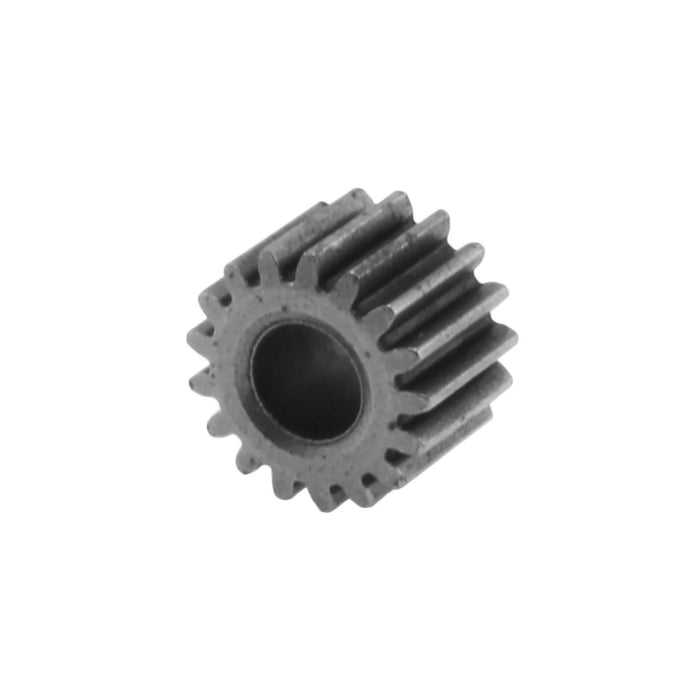

17 Tooth 0.6 Module 5 mm Round Bore Steel Gear

by AndyMark
$9.10 - $9.10
$9.10
$9.10
$9.10 - $9.10
$9.10
This pinion gear is designed to be pressed onto motors with a 5 mm output shaft such as most 700 class motors.
SKU am-2487
  • Description
  • Specifications
  • This pinion interfaces with our PG71 and PG188 gearboxes.
    • Bore: 5 mm Round
    • Material: Steel
    • Module: 0.6
    • Overall Thickness: 0.315 in.
    • Pitch Diameter: 10.2 mm
    • Pressure Angle: 20°
    • Teeth: 17
    • Weight: 0.1 lbs.
