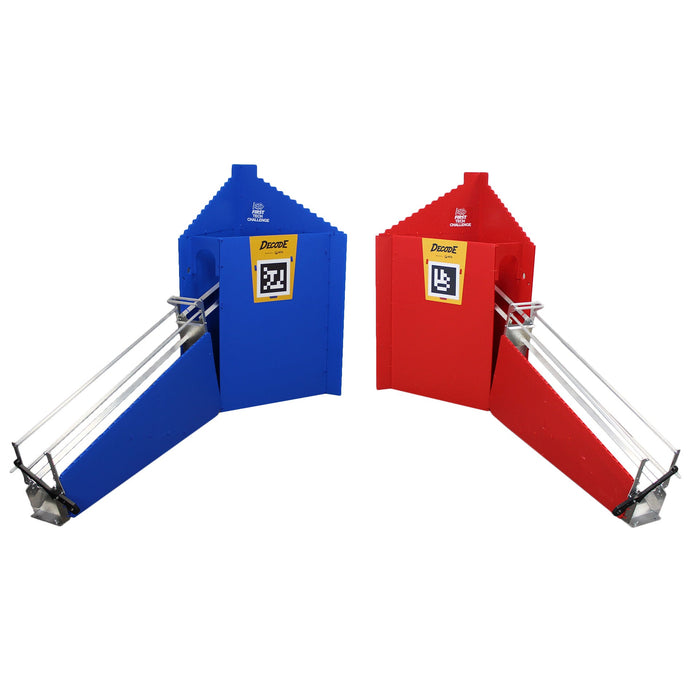

DECODE™ Goal and Ramp Assembly

Included in all:

• 1 - Upper Ramp Small Bracket (am-5720)
• 2 - Ramp 45" Peanut Extrusion (am-5733)
• 1 - DECODE Gate, HDPE black (am-5728a)
• 2 - Ramp 6.25" Churro Extrusion (am-5724)
• 2 - Goal Border Clip Bracket (am-5722)
• 2 - 5 Hole 6 in. Under Tile Disk (am-5422)
• 26 - 1/4-20 x 0.75 in. Self Tapping Hex Washer Head Screw (am-1310)
• 3 - Ramp 45" Churro Extrusion (am-5734)
• 1 - Upper Ramp Mount Bracket (am-5723)
• 2 - Ramp Support Bracket (am-5726)
• 8 - SHCS 10-32 x 1/2" Screw (am-1002)
• 18 - 10-32 Nylock Nut (am-1042)
• 9 - #10 Steel Washer (am-1026)
• 1 - Spacer, 5/16 OD x .192 ID x 9/32 Long, Aluminum (am-1757)
• 1 - Upper Ramp Large Bracket (am-5719)
• 2 - Ramp 28" Peanut Extrusion (am-5725)
• 1 - Ramp End Bracket (am-5727)
• 2 - 1/4-20 x 1.250 Hex Head Screw (am-1738)
• 1 - SHCS 10-32 x 1-1/2" Screw (am-1014)
• 2 - 1/4-20 Wing Nut (am-1705)
• 2 - 5 mm ID 15 mm OD Shielded Flanged Bearing (F695ZZ) (am-5469)
• 1 - 0.192 in. ID 0.625 in. OD 0.500 in. Long Nylon Spacer (am-1752)
• 1 - 10-32 x 2.5 in. SHCS (am-1024)
• 8 - 10-32 x 0.875 in. Socket Head Cap Screw (am-1753)
• 2 - 0.194 in. ID 0.375 in. OD 1.000 in. Long Nylon Spacer (am-1696)
• 1 - 5/16 OD x .192 ID x 1/2" Long, Steel Spacer (am-1758)
• 1 - Ramp Support (am-5737)
• 1 - Artifact Tray (am-5706)
• 1 - FTC Logo Sticker (am-5708)

Included in Red Option:

• 1 - Goal Front Panel, Red with Sticker applied (am-5716_rs)
• 1 - Goal Archway, Red (am-5730_red)
• 2 - Goal Rear Panel, Red (am-5717_red)
• 1 - Lower Ramp Blocker, Large Section, Red (am-5731_red)
• 2 - Goal Backboard Panel, Red (am-5718_red)
• 1 - Lower Ramp Blocker, Small Section, Red (am-5735_red)
• 1 - Goal Internal Ramp, Red (am-5721_red)
• 100 - Cable Tie, 8", 50lb tensile, Red (am-1552_red)

Included in Blue Option:

• 1 - Goal Front Panel, Blue with Sticker applied (am-5716_bs)
• 1 - Goal Archway, Blue (am-5730_blue)
• 2 - Goal Rear Panel, Blue (am-5717_blue)
• 1 - Lower Ramp Blocker, Large Section, Blue (am-5731_blue)
• 2 - Goal Backboard Panel, Blue (am-5718_blue)
• 1 - Lower Ramp Blocker, Small Section, Blue (am-5735_blue)
• 1 - Goal Internal Ramp, Blue (am-5721_blue)
• 100 - Cable Tie, 8", 50lb tensile, Blue (am-1552_blue)
