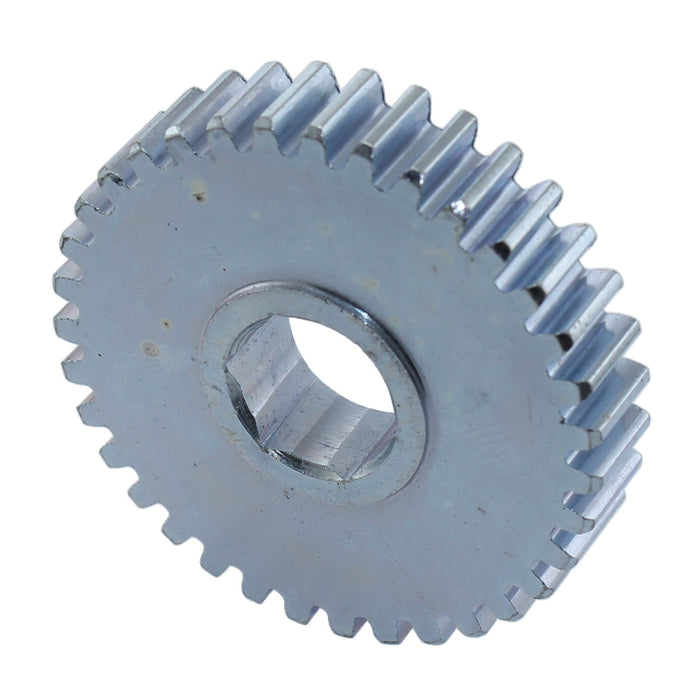

35 Tooth 20 DP 0.5 in. Hex Bore Steel Gear

This product has been discontinued.

35 Tooth 20 DP 0.5 in. Hex Bore Steel Gear - am-3329 - migrated

35 Tooth 20 DP 0.5 in. Hex Bore Steel Gear

by AndyMark

$15.00

$15.00 - $15.00

$15.00

$11.00

$11.00 - $11.00

$11.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued , see this similar gear

Description
Specifications
Documentation

This 20 DP gear has 35 teeth and has a perfect home waiting for it in your custom gearbox project. It is made from high strength steel.
- Bore: 0.500 in. [12.7 mm] (1/2) Hex
- Diametral Pitch: 20
- Face Width: 0.372 in.
- Finish: Zinc Plated
- Material: 4140 Steel
- Pitch Diameter: 1.85 in.
- Pressure Angle: 14.5°
- Teeth: 35
- Weight: 0.228 lbs.
CAD Files
am-3329 35T 20dp 500h.STEP
Layout Prints
am-3329 35T 20dp 500h Gear.PDF
