This product has been discontinued.
35 Tooth 20 DP 0.75 in. Hex Bore Steel Gear - am-2348 - migrated

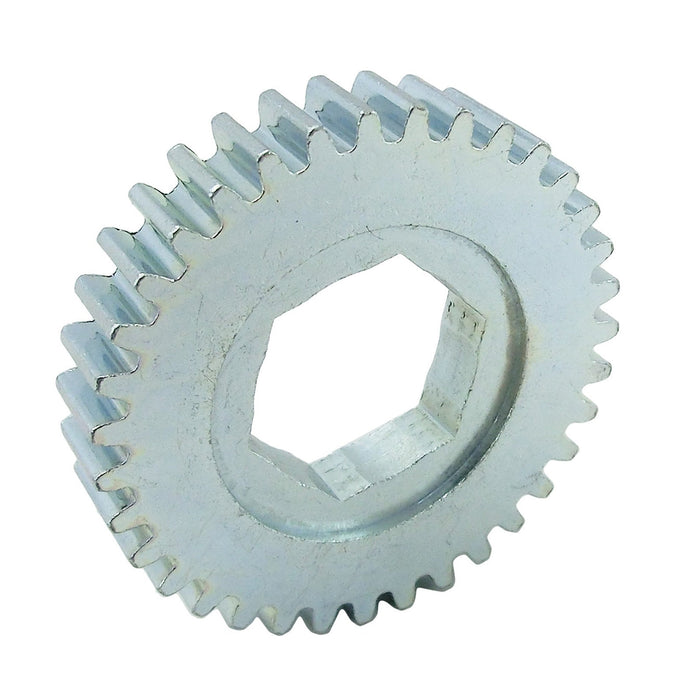

35 Tooth 20 DP 0.75 in. Hex Bore Steel Gear

by AndyMark
$13.50
$13.50 - $13.50
$13.50
$8.50
$8.50 - $8.50
$8.50

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued , see this similar option.

This product is currently unavailable for purchase

SKU am-2348
  • Description
  • Specifications
  • Introducing FlexHub, designed by engineers from iR3 Creative Engineering, from Orlando, Florida. FlexHub is a modular gear & hub solution from iR3 Creative. The concept is pretty simple. There is a hub, there is a gear, there are two retaining rings. Put them together into your assembly. If the gear ratio / shaft size / output / whatever isn't working rinse and repeat with a new hub or gear.

    Gear Specifications (Common dimensions among all FlexHub Gears):
    Part # Type # of Teeth Pitch Diameter CAD Weight Price
    am-2346 Gear 28 1.40 inch STP 0.09 lbs $12.50
    am-2347 Gear 32 1.60 inch STP 0.13 lbs $13.00
    am-2348 Gear 35 1.75 inch STP 0.17 lbs $13.50
    am-2349 Gear 40 2.00 inch STP 0.25 lbs $14.50
    am-2350 Gear 45 2.25 inch STP 0.33 lbs $15.00
    am-2351 Gear 48 2.40 inch STP 0.38 lbs $16.00
    am-2352 Gear 50 2.50 inch STP 0.42 lbs $16.00
    am-2353 Gear 56 2.80 inch STP 0.54 lbs $17.00
    • Bore: 0.75 in. (3/4) Hex
    • Diametral Pitch: 20
    • Hub Outside Geometry: 0.75 in. Hex
    • Hub Width: 0.4 - 0.41 in.
    • Material: 12L14 Steel
    • Pressure Angle: 14.5°
    • Teeth: 35
    • Weight: 0.2 lbs.
