45 Tooth 20 DP 0.75 in. Hex Bore Steel Gear - am-2350 - migrated

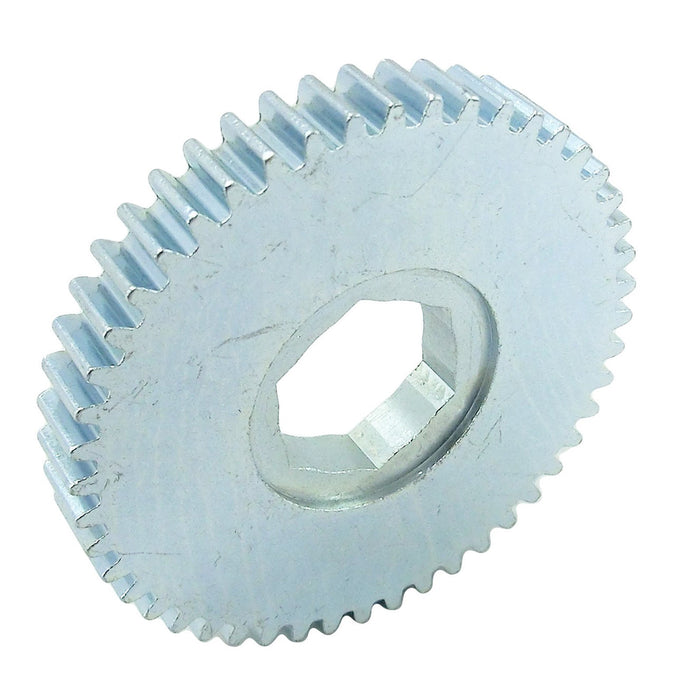

45 Tooth 20 DP 0.75 in. Hex Bore Steel Gear

by AndyMark
$15.00
$15.00 - $15.00
$15.00
$10.00
$10.00 - $10.00
$10.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

This product is currently unavailable for purchase

SKU am-2350
  • Description
  • Specifications
  • Documentation
  • Introducing FlexHub, designed by engineers from iR3 Creative Engineering, from Orlando, Florida. FlexHub is a modular gear & hub solution from iR3 Creative. The concept is pretty simple. There is a hub, there is a gear, there are two retaining rings. Put them together into your assembly. If the gear ratio / shaft size / output / whatever isn't working rinse and repeat with a new hub or gear.

    Gear Specifications (Common dimensions among all FlexHub Gears):
    Part # Type # of Teeth Pitch Diameter CAD Weight Price
    am-2346 Gear 28 1.40 inch STP 0.09 lbs $12.50
    am-2347 Gear 32 1.60 inch STP 0.13 lbs $13.00
    am-2348 Gear 35 1.75 inch STP 0.17 lbs $13.50
    am-2349 Gear 40 2.00 inch STP 0.25 lbs $14.50
    am-2350 Gear 45 2.25 inch STP 0.33 lbs $15.00
    am-2351 Gear 48 2.40 inch STP 0.38 lbs $16.00
    am-2352 Gear 50 2.50 inch STP 0.42 lbs $16.00
    am-2353 Gear 56 2.80 inch STP 0.54 lbs $17.00
    • Bore: 0.75 in. (3/4) Hex
    • Diametral Pitch: 20
    • Hub Outside Geometry: 0.75 in. Hex
    • Hub Width: 0.4 - 0.41 in.
    • Material: 12L14 Steel
    • Pressure Angle: 14.5°
    • Teeth: 45
    • Weight: 0.35 lbs.

  • Layout Prints

    am-2350 FlexHub Gear, 45T 20DP.PDF
