These gearboxes are designed by engineers from iR3 Creative Engineering, from Orlando, Florida. iR3 brings may years of experience within the FIRST Robotics Competition.

The purpose of this gearbox system, or "Modulox", is to provide a unique modular and flexible solution for prototyping drive mechanisms.

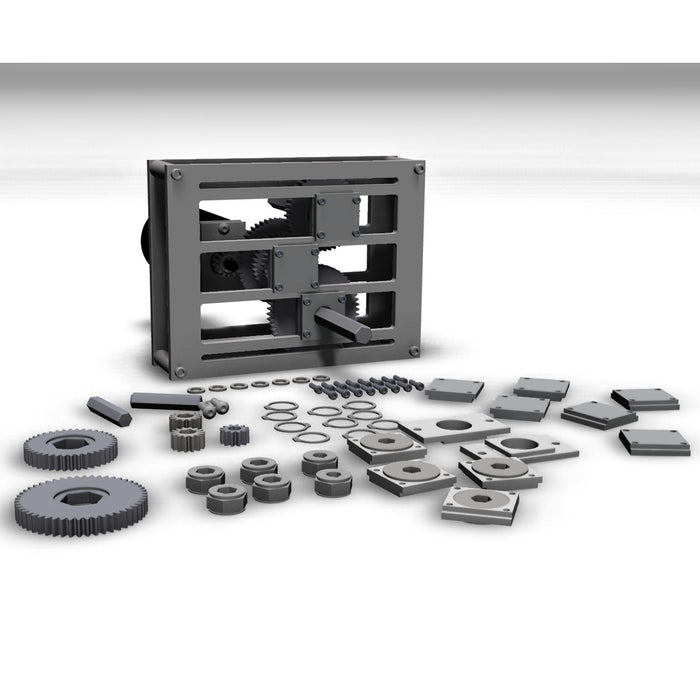

The Modulox system is a modular gearbox solution which uses innovative packaging that allows for an unparalleled level of flexibility in design. The key design feature allowing this modularity is a unique set of keyed bearing blocks that, when tightened, lock the gears in place. Hex shafts and bearings are used to allow for a high level of interchangeability.

NOTE: "THE Box" Modulox Gearbox is shipped un-assembled, in a kit form.

The CIM Motor is NOT included in this gearbox. This motor must be purchased separately.

Motor Input:
"THE Box" Modulox Gearbox accepts two (or one) 2.5 inch CIM Motors. Hardware is included for attaching two of these motors.

Included Hardware:
- Ten - Bearing Blocks for Modulox
- Four - 1/2 in. Hex Bore, Flanged, Shielded Ball Bearings
- Ten - Back Blocks for Modulox
- Two - 8mm id Retainer Clips
- One - 14 Tooth CIM Gear
- Two - Thru Blocks for Modulox
- Four - Rail Spacers for Modulox
- Two - 1/2 in. x 5 in. Long Hex Shafts
- Four - Motor Receivers for Modulox
- Four - #10-32 x 3/4 in. SHCS (am-1047)
- Four - #10-32 Nylock Nuts Buy a Bag
- Four - #10-32 x 2-1/2" SHCSBuy a Bag
- Six - 3/8 in. Hex Bore, Flanged, Shielded Ball Bearings
- Two - 2x2x10 mm Steel Machine Keys
- Three - 3/8 in. Hex Shaft
- Two - 3 Slot Modulox Plates
- Si - 5/16 in. Flat Washer (am-1009)>
- Forty - 6-32 x 1/2 in. SHCS Zinc Screw
- One - 12x520 Tooth CIM Gear
- Two - 3/8 in. Hex Bore14 Tooth Standard Width Gear
- One - 28 Tooth FlexHub Gear
- Two - 50 Tooth FlexHub Gear
- One - 40 Tooth FlexHub Gear
- One - 35 Tooth FlexHub Gear
- Two - Aluminum Clamp on Shaft Collar, 1/2 in. Bore, for Modulox Gearbox
- One - 56 Tooth FlexHub Gear
- Three - 1/2 in. Hex Bore FlexHub
- Seven - 3/8 in. Hex Bore FlexHub
- Two - 8mm Round Bore FlexHub
- Twenty - 3/4 in. diameter Snap Ring
- One - 45 Tooth FlexHub Gear
