This product has been discontinued.

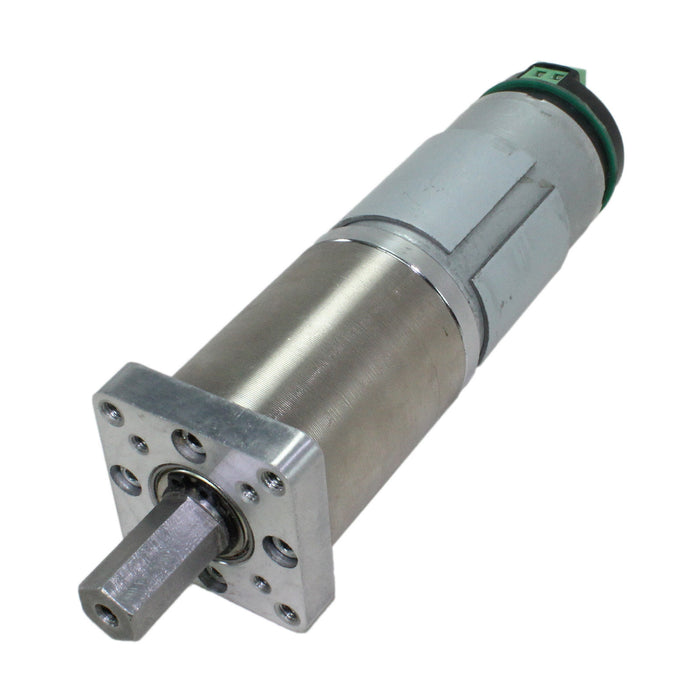

PG516 Gearmotor 0.50 in. Hex Output Shaft 516:1 Reduction - am-4250_1 - Image-1 - migrated

PG516 Gearmotor 0.50 in. Hex Output Shaft 516:1 Reduction

by AndyMark
$94.00 - $94.00
$94.00
$94.00
$94.00 - $94.00
$94.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued , see other options available

This product is currently unavailable for purchase

SKU am-4250
  • Description
  • Specifications
  • Documentation
  • The Planetary Gearbox (PG) series of gearboxes and gearmotors feature robust planetary gearing inside paired with reliable motors. You asked for it, we delivered. This gearbox now features a 0.50 inch hex output shaft. This allows for easy attachment to 0.50 inch bore gears, sprockets, hubs, and other motion products without the need for adapters or keys. The PG516 Gearmotor includes a 12V 775 class motor with an integrated 5V quadrature encoder, simplifying feedback control.

    • Free Speed: 11 RPM
    • Lubrication: Pre-lubricated Gears
    • Material: Steel
    • Mounting Geometry: Four 10-32 threaded holes on a 2 in. bolt circle
    • No Load Free Speed: 11 RPM

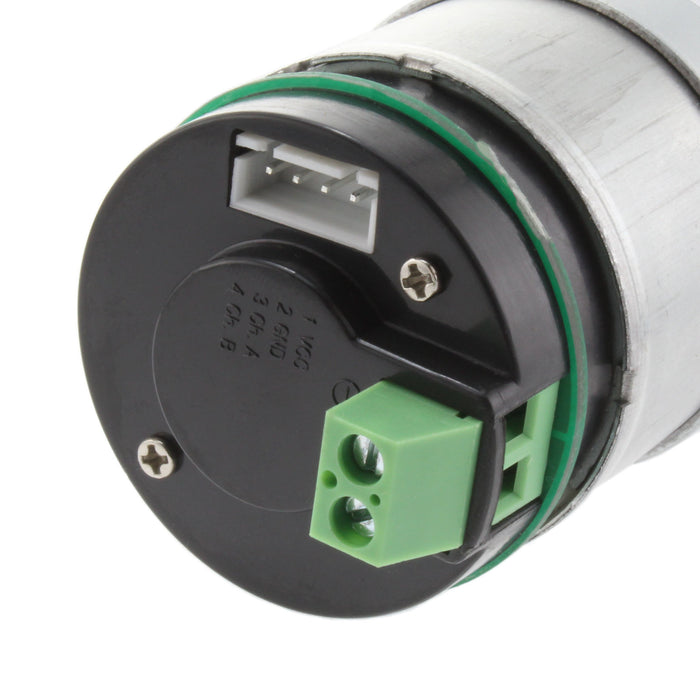

    • Pinout: Pin 1 - 5 VDC, Pin 2 - Ground, Pin 3 - Output Channel A, Pin 4 - Output Channel B
    • Pulses Per Revolution: 7
    • Ratio: 516:01:00
    • Stall Torque: 92 ft-lb [125 N-m]
    • Voltage: Motor-12 VDC, Encoder-5 VDC
    • Wattage: 35 W
    • Weight: 2.48 lbs.

  • CAD Files

    am-4250 PG516 500 hex Motor Encoder.STEP
    am-4250 PG516 500 hex+Motor+Encoder.STEP

    Guides

    am-4250 motor curve sheet.pdf
