POWERPLAY℠ Junction Assembly

THIS GAME IS A PAST SEASON, be sure that this item is for the correct game you are looking for.

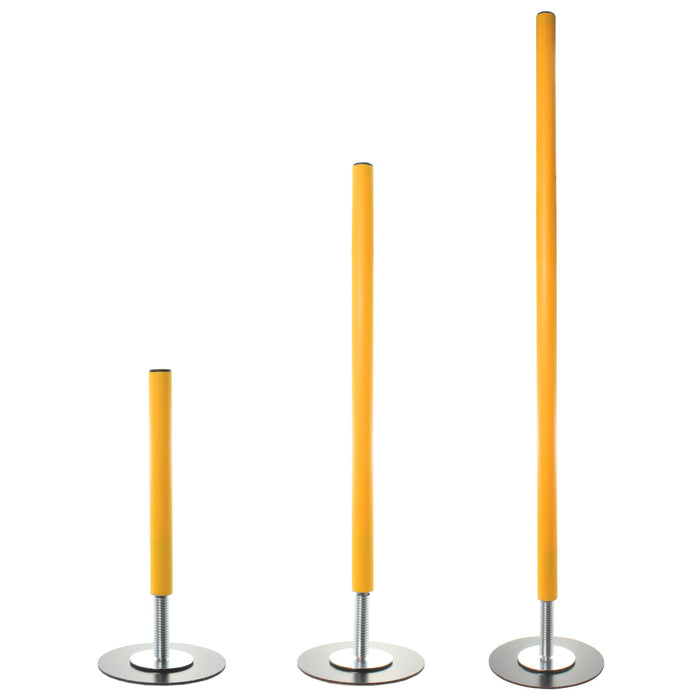

The Junctions are vital to scoring points in the 2022-2023 FIRST® Tech Challenge POWERPLAY℠ Presented by Raytheon Technologies. There are four junction variations, relating to height. This page has the Tall, Medium, and Low Junctions. The fourth option is the Ground Junction.

See how AndyMark can help your team take on POWERPLAY℠

Assembly Instruction Videos can be found here:

Included Items:

Components within am-4811

• 1 - 1.052 in. OD 10 in. long Yellow Pipe (am-4807)
• 1 - 1/4-20 x 1.25 in. Elevator Bolt (am-1629)
• 1 - 0.25 in. ID 3.0 in. OD Washer (am-1628)
• 1 - 1/4 in. x 1 in. Fender Washer (am-1421)
• 1 - Rubber Stopper with Bolt Hole (am-4806)
• 1 - 1/4 in. Flat Washer Steel (am-1027)
• 1 - 1/4-20 x 1/75 in. Hex Head Screw (am-1630)
• 1 - 1 in. OD Tube Cap (am-4810)
• 1 - Under Tile Disk (am-4804)
• 1 - Junction Spring (am-4805)

Components within am-4812 (no longer in stock as of June 5, 2023)

• 1 - 1.052 in. OD 20 in. long Yellow Pipe (am-4808)
• 1 - 1/4-20 x 1.25 in. Elevator Bolt (am-1629)
• 1 - 0.25 in. ID 3.0 in. OD Washer (am-1628)
• 1 - 1/4 in. x 1 in. Fender Washer (am-1421)
• 1 - Rubber Stopper with Bolt Hole (am-4806)
• 1 - 1/4 in. Flat Washer Steel (am-1027)
• 1 - 1/4-20 x 1/75 in. Hex Head Screw (am-1630)
• 1 - 1 in. OD Tube Cap (am-4810)
• 1 - Under Tile Disk (am-4804)
• 1 - Junction Spring (am-4805)

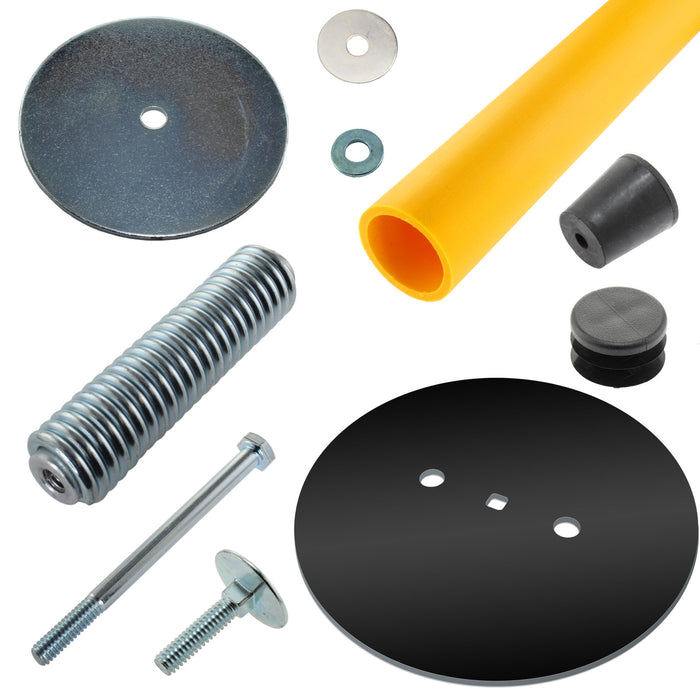

Components within am-4813

• 1 - 1.052 in. OD 30 in. long Yellow Pipe (am-4809)
• 1 - 1/4-20 x 1.25 in. Elevator Bolt (am-1629)
• 1 - 0.25 in. ID 3.0 in. OD Washer (am-1628)
• 1 - 1/4 in. x 1 in. Fender Washer (am-1421)
• 1 - Rubber Stopper with Bolt Hole (am-4806)
• 1 - 1/4 in. Flat Washer Steel (am-1027)
• 1 - 1/4-20 x 1/75 in. Hex Head Screw (am-1630)
• 1 - 1 in. OD Tube Cap (am-4810)
• 1 - Under Tile Disk (am-4804)
• 1 - Junction Spring (am-4805)
