This product has been replaced by am-3773a
- Description
- Specifications
- Documentation
-

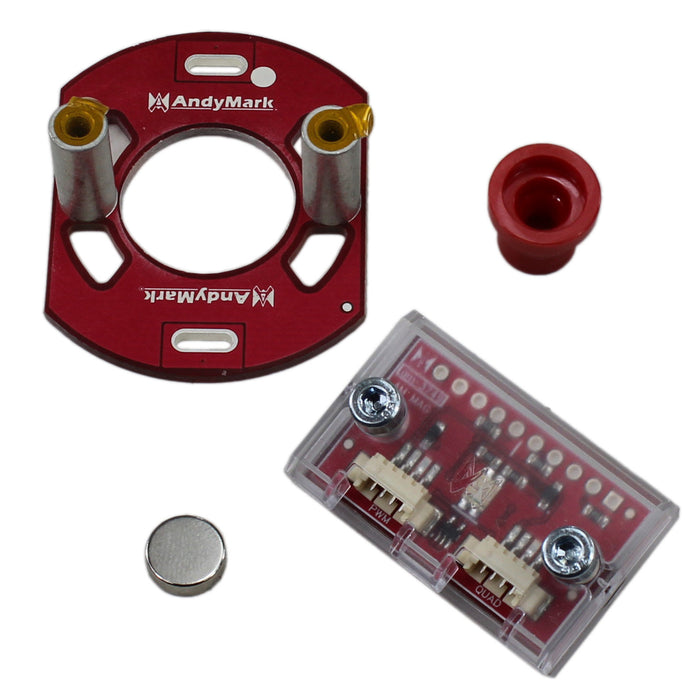

The RedLine Encoder Kit is designed to adapt the AM Mag Encoder(am-3479) onto the backshaft of the RedLine Motor. Due to the mounting it also provides additional support for motor spades. Included in the kit is a magnet adapter, mount board, screws, and the AM Mag Encoder.
Works with the Encoder cable, 36 in. long, with single pin connectors(am-2269)
Code Examples:
- JAVA PWM Example (.java)
- JAVA Quad Example (.java)
Quadrature Pinout
-
- Color: Red
- Output: 1024 CPR, Index, PWM position
- Voltage: 5 VDC
- Weight: 0.045 lbs.
-
Layout Prints
am-3773 AndyMark RedLine Encoder Kit.PDF
