This product has been discontinued.
35 Tooth 20 DP 1.125 in. Round Bore Steel Dog Pattern Gear for Rocketbox - am-3328 - migrated

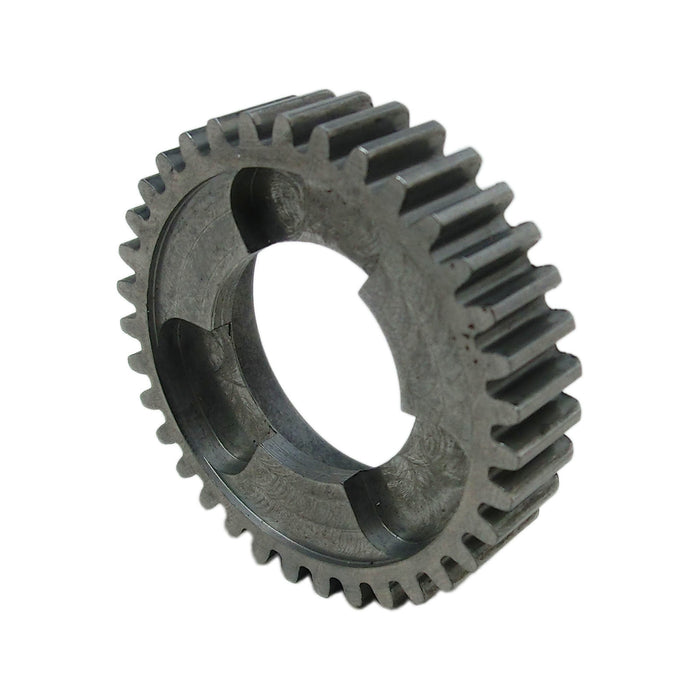

35 Tooth 20 DP 1.125 in. Round Bore Steel Dog Pattern Gear for Rocketbox

by AndyMark
$20.00
$20.00 - $20.00
$20.00
$11.00
$11.00 - $11.00
$11.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

This product is currently unavailable for purchase

SKU am-3328
  • Description
  • Specifications
  • Documentation
  • This 35 Tooth Dog Gear features a bearing bore suited to press fit a 1.125 in. diameter bearing, allowing this gear to serve as an output gear on a 0.500 in. shaft, as featured in our Rocketbox PTO.
    • Bore: 1.125 in. Round
    • Diametral Pitch: 20
    • Finish: Zinc Plated
    • Material: 4140 Steel
    • Pitch Diameter: 1.75 in.
    • Pressure Angle: 14.5°
    • Teeth: 35
    • Thickness: 0.425 in.
    • Weight: 0.2 lbs.

  • CAD Files

    am-3328 Rocketbox 35T Drive Output Gear.STEP

    Layout Prints

    am-3328 Rocketbox 35T Dog Gear.PDF
