Bosch Seat Motor and Cable - am-3564 - migrated

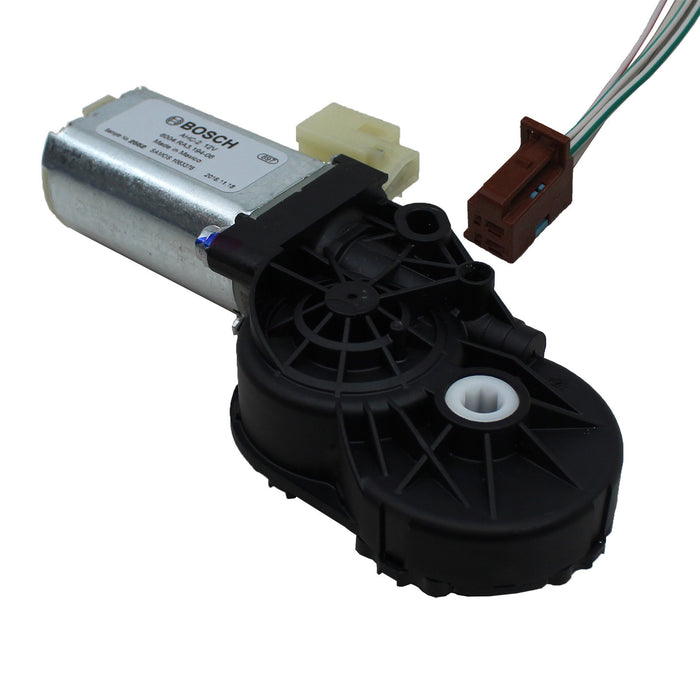

Bosch Seat Motor and Cable

by AndyMark
$39.00 USD - $39.00 USD
$39.00 USD
$39.00 USD
$39.00 USD - $39.00 USD
$39.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued see the motor by itself.

This product is currently unavailable for purchase

SKU am-3564
  • Description
  • Specifications
  • This motor is often used in power seats for raising the seat up and down. It is perfect for precise positioning and not back driving when power is cut. This motor features an integrated hall sensor to enable accurate positioning feedback. The wire harness can be purchased individually as am-3548 and the motor can be purchased individually as am-3493.

    Usage:
    WPI has some great documentation on how to interface and mount this motor.
    https://wpilib.screenstepslive.com/s/4485/m/63630/l/679357-bosch-seat-motor
    For an easy conversion to a 1/2 in. Hex shaft, try our Hex Adapter Shaft for Bosch Motor (am-3723)
    Standard Automotive Non-Robot Usage:
    This is also known as GM part #13593151. Check out gmpartsdirect.com for a list of vehicles it fits.
    • GM Part #: 13593151
    • Length: 13.5 in.
    • Manufacturer: Bosch LLC
    • Manufacturer Part #: 6 004 RA3 194-06
    • No Load Current: less than or equal to 3 A
    • No Load Free Speed: 24 RPM
    • Stall Current: 12 A
    • Stall Torque: 16.2 ft-lb [22 N-m]
    • Wattage: 44 W
    • Weight: 0.8 lbs.
