CANifier

by AndyMark
$40.00 - $40.00
$40.00
$40.00
$40.00 - $40.00
$40.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and is available at CTR Electronics

This product is currently unavailable for purchase

SKU am-3780
  • Description
  • Specifications
  • Documentation

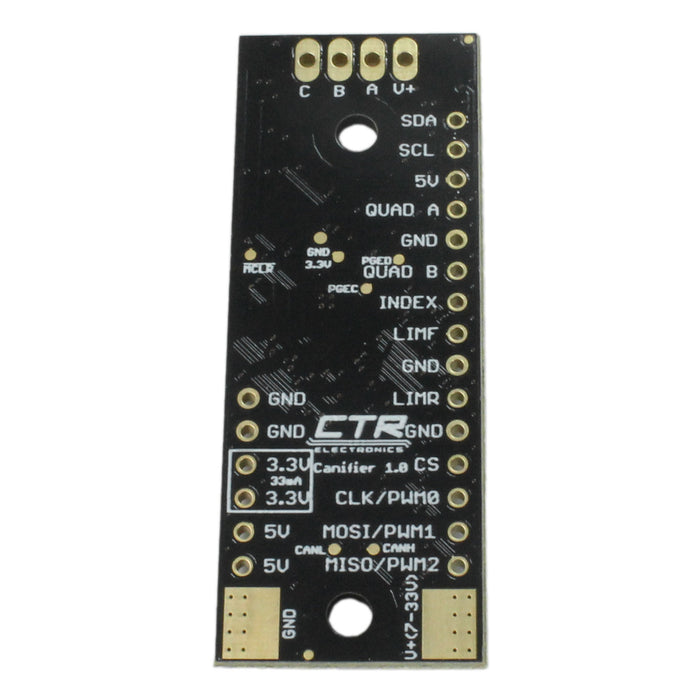

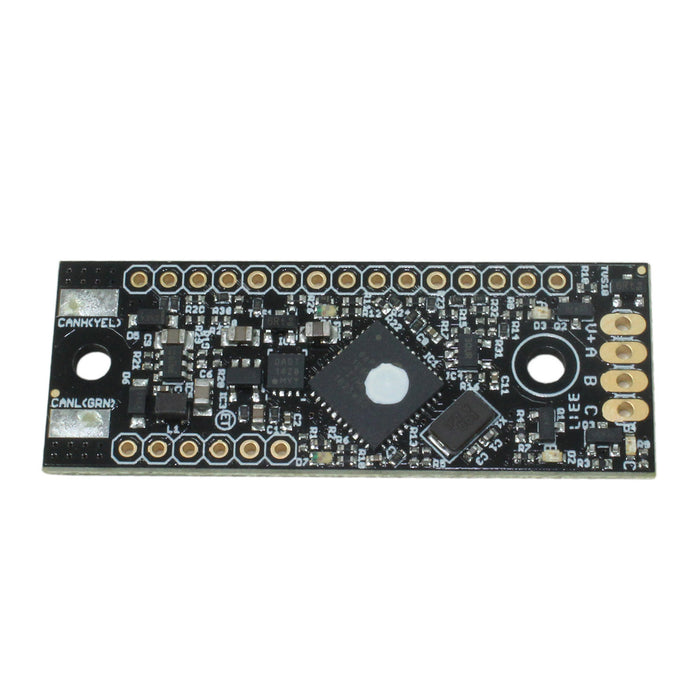

  • The CANifier is a CAN-controlled IO and LED strip driver. Three low-side outputs that can handle up to 3.5 amps each interface easily with most common RGB LED strips. PWM inputs and outputs allow for connectivity with ultrasonic sensors, SRX Mag Encoders, LIDAR Lite V3s, RC receivers, and more. 5V and 3.3V power supplies with a wide voltage input range facilitates adding sensors without long wire runs. Additionally, 0.1 in. spaced pins let users plug the CANifier directly into a breadboard for prototyping. The CANifier is field-upgradeable via CAN. Please see the User Manual for more information.

    Example code can be found on GitHub.

    For Cross The Road Electronics warranty replacements or assistance with CTRE products, please contact Cross The Road Electronics. Email: support@ctr-electronics.com
    • Height: 0.14 in.
    • Interface(s): GPIO, LED Strip Driver, PWM in/out
    • Length: 2.00 in.
    • Mounting Holes: 4-40 screw slots, 1.5 in. spacing
    • Width: 0.75 in.

  • Layout Prints

    am-3780 - CANifier_1.0.PDF

    Guides

    am-3780 CANifier User's Guide.pdf
