This product has been replaced by BCLS2CB

Cheap & Dirty Two Motor Electronics

Name: Cheap & Dirty Two Motor Electronics
Brand: AndyMark
SKU: am-2493
Price: 320.0 USD
Availability: OutOfStock
Rating: 4.33 (3 reviews)

by AndyMark

$320.00 - $320.00

$320.00

$320.00 - $320.00

$320.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by BCLS2CB

Description
Specifications
Documentation

Overview:

This is a complete electronic kit that you can hook up to two motors and start driving in tank mode right away. Make a few quick connections, and you're ready to go!

No need (or room) for programming here, this is just down and dirty radio control unit--analog joysticks and pots on the controller, six PWM outputs on the receiver. It's very simple, but with six channels (2 analog joysticks with 2 channels each, and 2 pot controls) you can hook up skid-steer control quickly and have four open channels left for whatever you want to add. If you want to test out omnidirectional drive systems, you can with the optional Mecanum Mixer for Cheap & Dirty (am-2715)

The entire kit is based around 2.4 GHz radio control, just like what controls your radio controlled car, boat, or plane. Now you can interface with robot parts without the need to program anything. It can be used to help test your mechanical design before the programmers are ready to input code, or your electrical group has finished wiring.

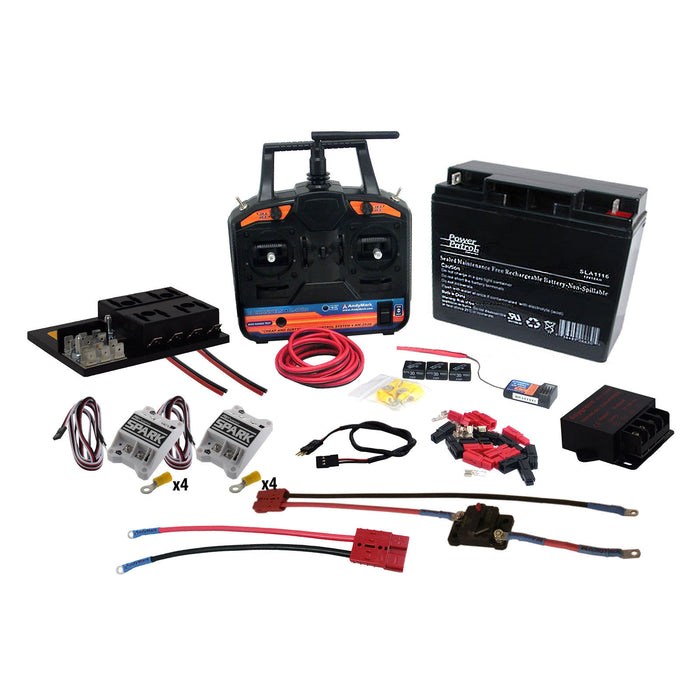

Included Hardware:
- One - Cheap and Dirty Radio Control System (am-2520)
- One - 8 Ganged ATC Fuse Block for Snap Action Breakers with Ground Terminal (am-3136)
- One - 5 ft of bonded red/black wire (buy 25 ft)
- Three - 30 Amp Snap Action Breakers (am-0290)
- One - 12V 17Ah Battery (half of am-3062)
- One - Connector, Female, 12-10 AWG, Tab .032"x.250", Yellow, Qty 10
- One - Powerpole Kit (8 Red/8 Black Housings, 16 Contacts)
- Two - SPARK Brushed DC Motor Controller with additional connectors (am-4264) - updated 11/01/20
- One - Power Converter 12/24VDC to 5VDC (am-3068)
- One - 3-wire PWM cable, 12 inches (am-0693) (This cable is used to power the receiver.)
- One - Robot Power Cable Kit (am-0975_B18R11)
- One - 12 in. Battery Cable (am-0009)
Not Included:
- Battery Charger not included, we sell a 3 Bank, 6AMP charger here
Guides
am-2493 Wiring Diagram.jpg

Good system to get you going with a project W...

Good system to get you going with a project
Wish there was more documentation for the radio and how to use the channels

Documentation for this specific kit is provided above in the form of a wiring guide. Channels 2 and 3 (the vertical axis of both joysticks) would be used for a two motor tank setup. The Cheap and Dirty system has additional documentation available on the main page: https://www.andymark.com/products/cheap-and-dirty-radio-control-system. Channels 1 and 4 correspond to the horizontal axis of each joystick and channels 5 and 6 correspond to the potentiometers near the top of the controller. We encourage our customers to contact support@andymark.com if there are questions or concerns about a product.

Cheap & Dirty Electronics, for two motors (am-2493

satisfied with performance, but installation instructions were very poor. Quality is questionable, not sure how durable this product will be.

Just what it says

Quick and easy way to get a basic bot up and running. Documentation is not up to the standards for most AndyMark products, so be prepared to figure things out on your own.
