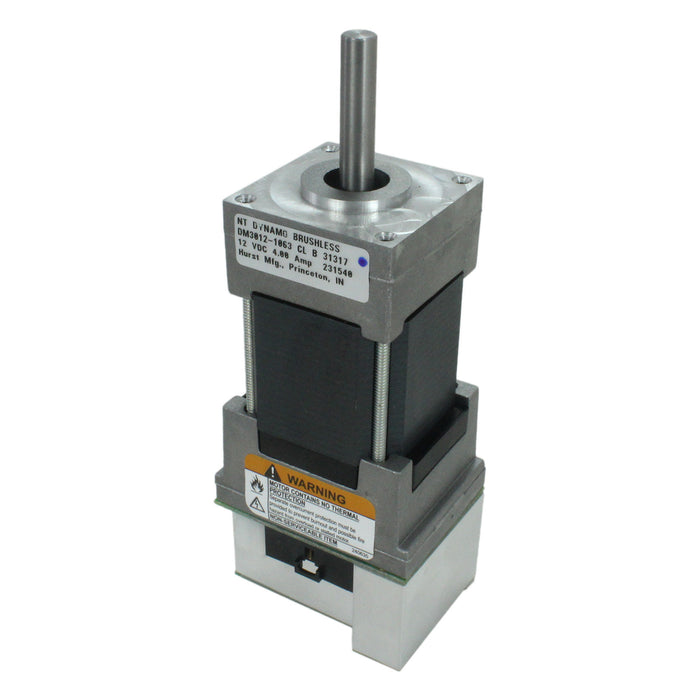

The Dynamo is a 12VDC brushless motor and integrated controller manufactured by Nidec Motor Corporation.

Description
Specifications
Documentation

The Dynamo is a 12VDC brushless motor and integrated controller manufactured by Nidec Motor Corporation. This low powered motor with integrated controller is a new alternative to the brushed motors used within the FIRST Robotics Competition (FRC). The Dynamo is an excellent way for FRC teams to learn about brushless motor technology as they power turrets, small lifts or arms, and conveyor systems. Brushless motors have been used for years in non-FIRST applications, for more information on the difference between brushed and brushless visit this informative link.

Nidec has manufactured this motor to have an 8 mm output shaft allowing it to be used in some applications where you would normally use a CIM motor.

This motor's controller is integrated into the back of the motor, so data is fed directly from the roboRIO.

Wiring and Programming:

Directions and examples for how to wire and program the Dynamo can be seen on the WPILIB website.

Associated Parts:
- 2x2x10 mm Machine Key, steel (am-1121)
- Retainer Clip, 8 mm id (am-0033)
- Maximum Power: 44 W
- Mounting Holes: #6-32 tapped holes (4), on a 2 in. bolt circle
- No Load Current: 0.28 A
- No Load Speed: 2700 RPM
- Overall Length: 6.192 in.
- Stall Current: 6.5 A
- Stall Torque: 0.234 ft-lb [0.318 N-m]
- Voltage: 12 VDC
- Weight: 1.5 lbs.
Guides
am-3740 Nidec Dynamo DM3012-1063-B Spec.pdf
Layout Prints
am-3740 DM3012-1063.PDF
am-3740 DYNAMO SPORT SERIES LAYOUT.PDF
Datasheets
am-3740 840205-000 Controller Datasheet for FIRST BLDC Dynamo Motor.pdf
