EVO Slim - 2 Stage 2 Motor 22.67:1 Ratio - am-3804_226 - migrated

EVO Slim - 2 Stage 2 Motor 22.67:1 Ratio

by AndyMark
$129.00 - $129.00
$129.00
$129.00
$129.00 - $129.00
$129.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

This product is currently unavailable for purchase

SKU am-3804_226
  • Description
  • Specifications

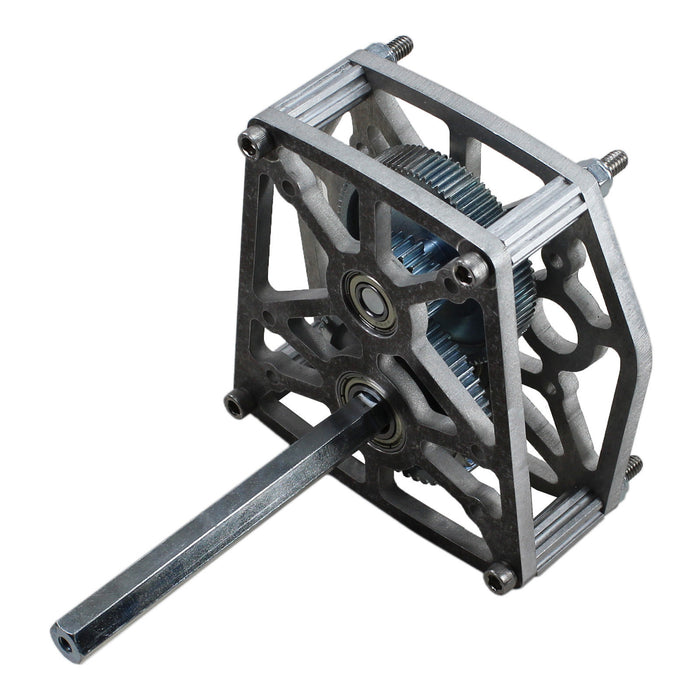

  • The AndyMark EVO Slim is a line of single-speed gearboxes, offering a high performance, lightweight solution to create robust drivetrains for competition robots. The EVO Slim line of gearboxes share many common parts with the EVO Shifter, including weight relieving features, as well as all steel gears and aluminum plates. The EVO Slim gearboxes ship with the am-0801a Toughbox® Long Hex Output Shaft as standard, but teams can switch out the shaft for any other Toughbox® Output Shaft (sold separately.)

    This configuration of the EVO Slim accepts up to 2 motors.

    This gearbox is shipped in kit form, not assembled. The EVO Slim ships with hardware to accept up to two CIM Motors (am-0255). Please note CIM motors are not included with these gearboxes.

    Note about CIMs:


    The EVO Shifter utilizes a 15 Tooth 32DP gear as the CIM gear which requires a press fit. Due to the intended interference fit (0.001 - 0.002 in.) along the 0.750 in. long gear, a minimum 3 ton arbor press is required to install this gear onto the motor in conjunction with a provided aluminum spacer to help set the distance of which the pinion should be installed from the end of the motor shaft (approximately 0.40 in.). If you do not have access to this size arbor press, we have the option to add CIM motors to your order with the pinion gears pre-installed, available as am-0255_15T.


    Gear Ratios Options:
    Part # Overall Ratio Input Gear Large Cluster Gear Small Cluster Gear Large Output Gear Price
    am-3804_047 4.77:1 15T 85T 38T 32T $129.00
    am-3804_060 6.00:1 15T 85T 34T 36T $129.00
    am-3804_075 7.56:1 15T 85T 30T 40T $129.00
    am-3804_108 10.86:1 15T 85T 24T 46T $129.00
    am-3804_141 14.17:1 15T 85T 20T 50T $129.00
    am-3804_163 16.37:1 15T 85T 18T 52T $129.00
    am-3804_226 22.67:1 15T 85T 14T 56T $129.00

    Encoder Options:
    The EVO Slim for CIM accepts either the E4T Optical Encoder Kit or the SRX Mag Encoder. When using the SRX Mag Encoder, use the SRX Magnetic Encoder Mounting Hardware Kit.
    • Input Stage Gear Type: 32DP, 20° pressure angle spur gears
    • Material: 6061 Aluminum
    • Motor Input: CIM, NEO, Falcon
    • Motor Quantity: 1, 2
    • Output Shaft: 1/2 in. Hex, 4140 Steel
    • Output Stage Gear Type: 20DP, 14.5° pressure angle spur gears
    • Weight: 1.78 lbs.
