Pinion Press Tool

by AndyMark
$29.00 - $29.00
$29.00
$29.00
$29.00 - $29.00
$29.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

This product is currently unavailable for purchase

SKU am-3826a
  • Description
  • Specifications
  • Documentation

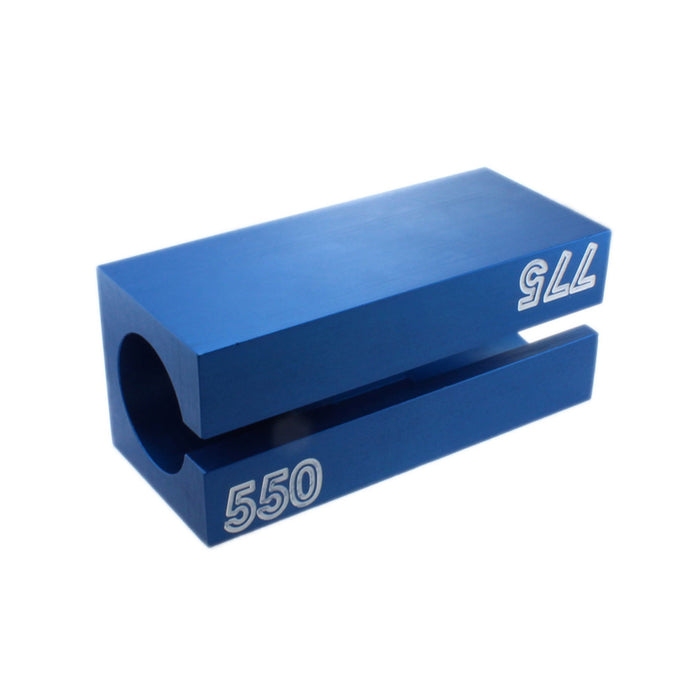

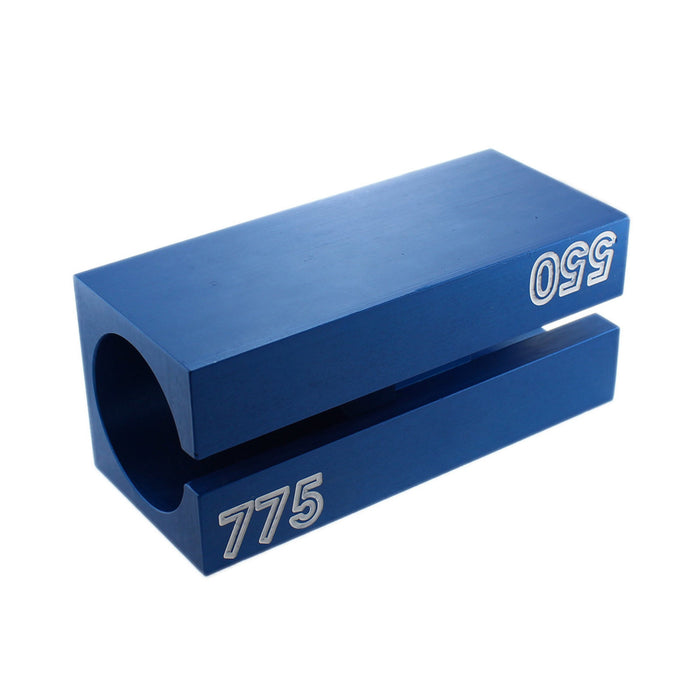

  • This pinion press tool is similar to one we have used internally at AndyMark for years. It utilizes steel screws and an aluminum body to allow customers to support the back shaft of their 550 series motors or 775 series motors while utilizing an arbor press to push a pinion onto the shaft. This tool is designed to allow for pre-wired motors to be setup as well. Engraved text allows the user to quickly see which side of the tool is facing up. The "a" version features an extended cavity for 775 motors holding them more secure in the tool. Please note, engraving may differ in appearance from the product image.

    Features:
    • Grade 5 Steel Hex Head Cap Screws to support the back shaft of your motor
    • Motor cavities designed to hold a motor with minimal clearance to make sure your pinion is pressed on straight
    • Height: 2.25 in.
    • Length: 5.25 in.
    • Material: 6061-T6 Aluminum
    • Weight: 1.7 lbs.
    • Width: 2.25 in.

  • CAD Files

    am-3826a Aluminum Pinion Press Tool.STEP

    Layout Prints

    am-3826a Pinion Press Tool.PDF
