This product has been replaced by am-4635
- Description
- Specifications
- Documentation
-

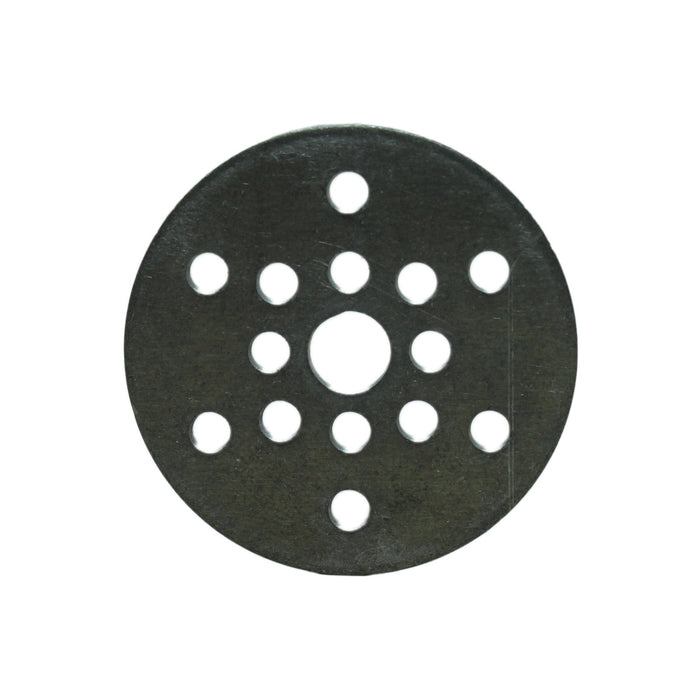

The 32 mm Pulley Plate is one of two pulley plates available in the S3 Ecosystem. Two of these plates in conjunction with standoffs, screws, and a nub create an effective and robust winch, am-3727.
It has a central bolt pattern for an AndyMark XL Nub (am-3441a) or the 0.770 in. bolt circle used with the Actobotics building system. The outside diameter of this plate matches the root diameter of a 24 Tooth Ninja Star Sprocket (am-3283). This allows it to be used as an idler chain guide. -
- Bore: 8 mm
- Diameter: 1.782 in.
- Holes: 6 holes, 0.150 in. diameter on a 32 mm [1.26 in.] bolt circle4 holes., 0.150 in. in diameter on a 0.770 in. bolt circle, 4 holes, 0.150 in. in diameter on a 16 mm [0.630 in.] bolt circle
- Material: 5052 Aluminum
- Thickness: 2.29 mm [0.09 in.]
- Weight: 0.019 lbs.
-
Layout Prints
am-3686-32 S3 Pulley Plate 32mm.PDF
am-3686-32 S3 32mm Winch Plate REV2.pdfCAD Files
am-3686-32 S3 Winch Plate.STEP
