S3 64 mm Pulley Plate - am-3686-64 - migrated

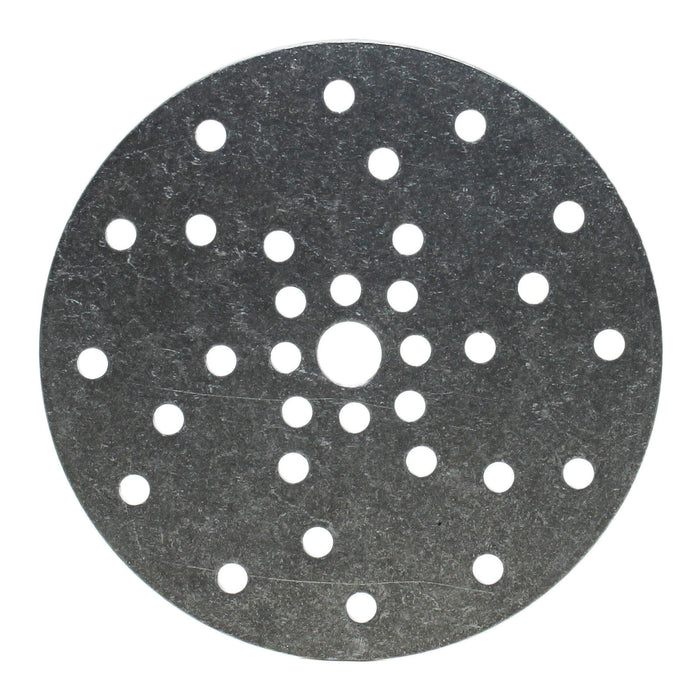

S3 64 mm Pulley Plate

by AndyMark
$9.00 - $9.00
$9.00
$9.00
$9.00 - $9.00
$9.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

This product is currently unavailable for purchase

SKU am-3686-64
  • Description
  • Specifications
  • The 64mm Pulley Plate is one of two pulley plates available in the S3 Ecosystem. Two of these plates in conjunction with standoffs, screws, and a nub create an effective and robust winch, am-3728.

    It has a central bolt pattern for an AndyMark XL Nub (am-3441a) or the 0.770 in. bolt circle used with the Actobotics building system. There are three different bolt circles where you can attach standoffs. The different bolt circles can form different diameter pulleys from 32 mm to 64 mm. The outside diameter of this plate matches the root diameter of a 40 Tooth Ninja Star Sprocket (am-3285). This allows it to be used as an idler chain guide.
    • Bore: 8 mm
    • Diameter: 3.053 in.
    • Holes: 12 holes 0.150 in. in diameter on a 64 mm [2.50 in.] bolt circle 6 holes, 0.150 in. in diameter on a 48 mm [1.89 in.] bolt circle 6 holes, 0.150 in. in diameter on a 32 mm [1.26 in.] bolt circle 4 holes, 0.150 in. in diameter on a 0.770 in. bolt circle 4 holes, 0.150 in. in diameter on a 16 mm [0.630 in.] bolt circle
    • Material: 5052 Aluminum
    • Thickness: 2.29 mm [0.09 in.]
    • Weight: 0.058 lbs.
