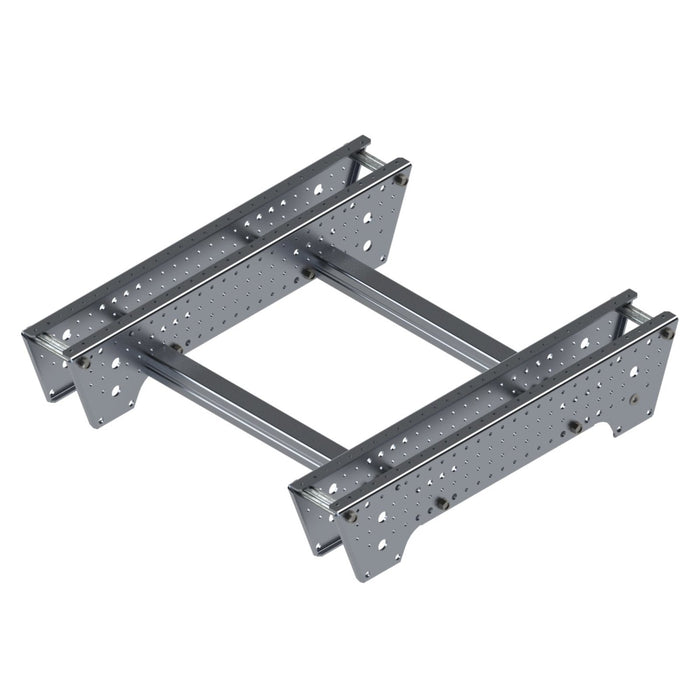

TileRiser Base Frame Only

This product is a great starting point to build off of if you already have your own motors, wheels, and other items. This Frame is perfect for that high-ground clearance needed for parts of this year's game.

Various Configurations:
This can be configured into many different drive styles, wheel types, and gearbox configurations. Each variation is made with customizability in mind and a sturdy base to build upon. Use the FTC Chassis Configurator to get all the parts you need in one kit.


Included Hardware:

• 4 - TileRiser Plate (am-4614)
• 8 - 1/2 in. Churro @ 2.48 in. (am-3399)
• 2 - 1 x 1 Peanut Extrusion @ 11.25 in. (am-3395)
• 24 - M3-0.5 x 5 mm Socket Head Cap Screw (am-1443)
• 28 - 1/4-20 x 0.75 in. Self Tapping Hex Washer Head Screw (am-1310)
