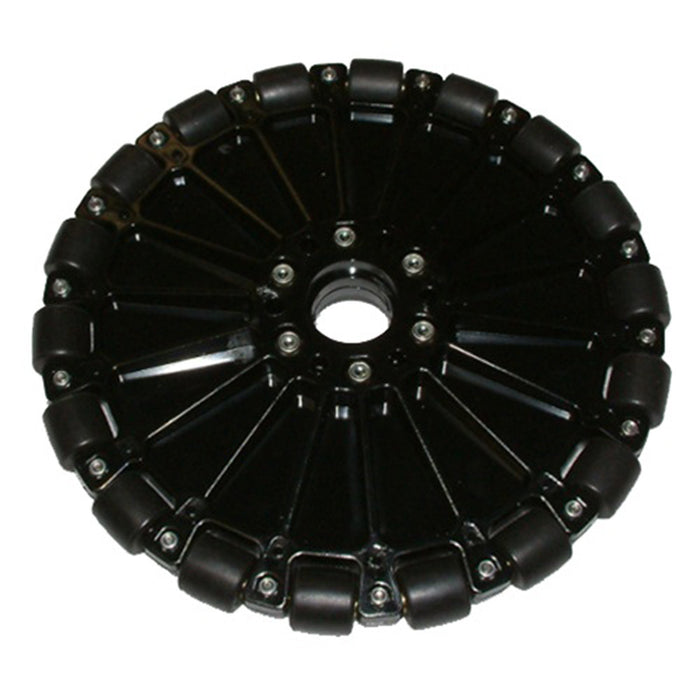

8" Plastic Omni Wheel
Usage With Axle and Hub:- If you wish to drive this wheel with an axle and hub, you can pick your hub by fitting any of the AndyMark hubs to this wheel. Hubs are not included with this wheel. If this is your choice, then no bearing is needed. To install a hub onto this wheel, use #10 screws and nuts. #10-24x3/4 thread forming screws.
Usage With Sprockets and Bearings:
- If you wish to drive this wheel with a sprocket, then the sprocket needs to be attached to the side of the wheel with #10 screws and nuts. You will also need to press ball bearings into the wheel so that it may spin on a shaft or bolt. The ball bearing must have a 1.125 in. od. For a 1/2 in. shafts, use am-0181. For a 3/8 in. shafts use am-0209.
- Two - 8 in. Plastic Omni Wheel Webs
- Eighteen - Black SBR Rollers
- Eighteen - 1x1/8 Steel Dowel Pins
- Thirty-Six - Omni-roller Sleeves
- Six - Individual M5x0.8 x 20 mm SHCS
- Six - Individual M5 Nylock Nuts
- Eighteen - Individual M3 Nylock Nuts
- Eighteen - Individual M3 x 10 mm SHCS
-
- Bolt Pattern: 6 hole on a 1.875 in. diameter bolt circle
- Bore: 0.96 in. diameter through hole, with two 1.125 in. diameter bearing pockets
- Diameter: 7.9 in.
- Load Capacity: 50 lbs. (rollers don't spin past this weight)
- Material: Black Polycarbonate, Brass
- Roller Axle: Steel Dowel Pin
- Roller Durometer: 80A
- Rollers: 18
- Weight: 1.13 lbs.
- Width Across Middle: 1.04 in.
-
CAD Files
am-0048 8in Plastic Omni Wheel.STEPGuides
am-0048 8-inch Plastic Omni Wheel Assembly Instructions AM-0048.pdf
