This product has been discontinued.

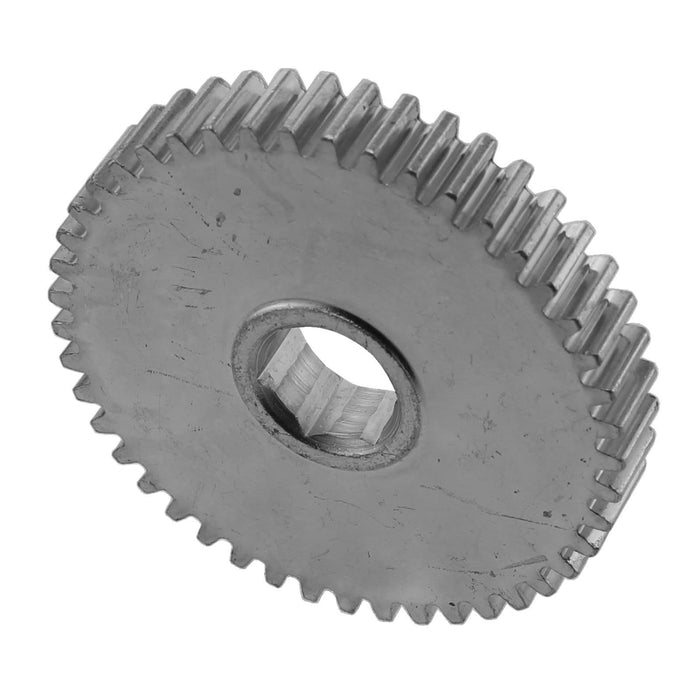

45 Tooth 20 DP 0.5 in. Hex Bore Steel Gear

Name: 45 Tooth 20 DP 0.5 in. Hex Bore Steel Gear
Brand: AndyMark
SKU: am-0179
Price: 17.0 USD
Availability: OutOfStock
Rating: 4.33 (3 reviews)

by AndyMark

$17.00 - $17.00

$17.00

$17.00 - $17.00

$17.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued , see similar am-4394

Description
Specifications
Documentation

This gear can be used in the Toughbox series gearboxes, replacing the 50 Tooth Large Output Gear. It can be paired with a 19 Tooth Small Cluster Gear, in order to increase the output speed of the Toughbox.

Standard Toughbox output reduction: 12.75:1
New Toughbox output reduction, using this gear and a 19 Tooth Small Cluster Gear: 8.45:1
- Bore: 0.500 in. [12.7 mm] (1/2) Hex
- Diametral Pitch: 20
- Finish: Zinc Plated
- Material: 4140 Steel
- Pitch Diameter: 2.25 in.
- Pressure Angle: 14.5°
- Teeth: 45
- Thickness: 0.4 in.
- Weight: 0.36 lbs.
CAD Files
am-0179 45 Tooth Large Output Gear.STEP
Layout Prints
am-0179 45 Tooth Large Output Gear rev2.PDF

Review

5 Stars

Poor machining

Gears are mass-produced with poor tolerancing. They require a lot of run-in and sometimes lapping, even in well toleranced gearboxes.

Review

5 Stars
