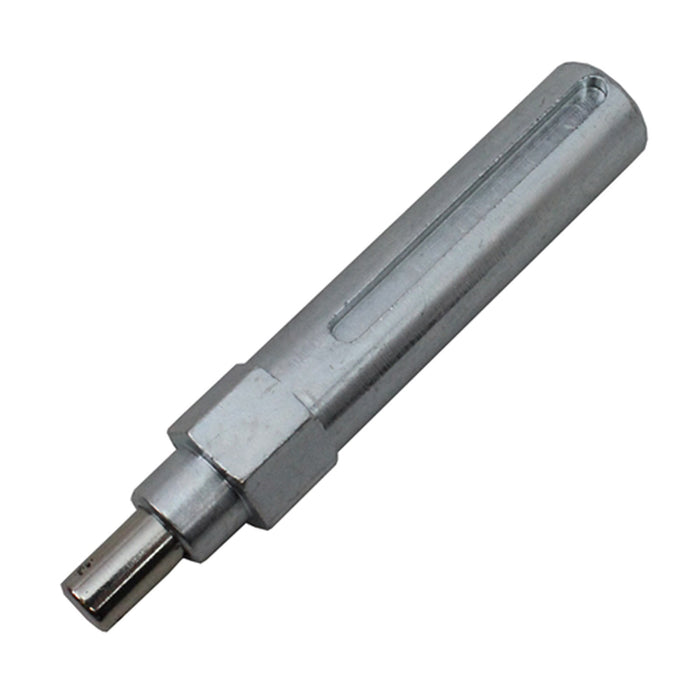

1/2 in. Keyed Steel Output Shaft with Magnet for CIMple Box & Spinbox

by AndyMark
Sold out
$22.00 - $22.00
$22.00
$22.00
$22.00 - $22.00
$22.00
SKU am-0740a
  • Description
  • Specifications
  • Documentation
  • This 1/2 in. keyed output shaft is used in the CIMple Box and SpinBox gearboxes.
    • Diameter of Large End: 0.49 in.
    • Diameter of Magnet: 0.24 in.
    • Diameter of Small End: 0.37 in.
    • Hex Width: 0.5 in.
    • Keyway Depth: 0.06 in.
    • Keyway Length: 1.43 in.
    • Keyway Width: 0.128 - 0.131 in.
    • Large End Includes: 1/4-20 Tapped Hole 1/2 in. Deep
    • Material: 4140 Steel
    • Overall Length: 2.54 in.
    • Weight: 0.13 lbs.

  • Layout Prints

    am-0740a CIMPle Box Shaft With Magnet REV6.PDF
