Toughbox Classic Series 1/2 in. Hex Long Output Shaft - am-0801a - migrated

Toughbox Classic Series 1/2 in. Hex Long Output Shaft

by AndyMark

$18.00 USD - $18.00 USD

$18.00 USD

$18.00 USD

$18.00 USD - $18.00 USD

$18.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued , see this similar option

Description
Specifications
Documentation

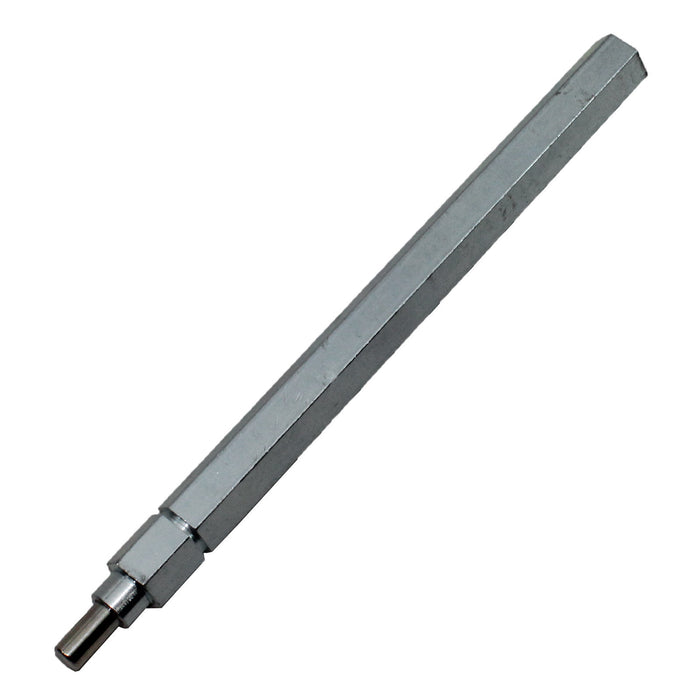

This is an optional long steel output shaft for the Toughbox® series gearboxes. This shaft includes a pre-installed magnet designed specifically with the E4T OEM Miniature Optical Encoder (am-3132) and SRX Magnetic Encoder (am-3445) encoder in mind. This shaft has replaced am-0801.

Usage:
If using this shaft with the SRX Magnetic Encoder (am-3445), the SRX Magnetic Encoder Mounting Hardware Kit (am-3565) will be needed. The hardware allows for proper spacing of the encoder from the shaft magnet on Toughbox® Series Gearboxes and the EVO Shifter.
- Diameter of Magnet: 0.249 in.
- Hex Width: 0.5 - 0.497 in. across hex flats
- Large End Includes: 1/4-20 tapped hole
- Material: 4140 Steel
- Overall Length: 7.08 in. (3.5 in. longer than the standard shaft)
- Weight: 0.5 lbs.
CAD Files
am-0801a Toughbox Long Hex Shaft With Magnet REV3.STEP
am-0801a Toughbox Series Long 500Hex Output Shaft REV4.STEP
Layout Prints
am-0801a Toughbox Long Hex Shaft With Magnet REV3.PDF
am-0801a Toughbox Series Long 500Hex Output Shaft REV4.pdf
