Hex Head Plug - 1/4 in. NPT - am-2959 - Material=Nylon - migrated

Hex Head Plug - 1/4 in. NPT

by AndyMark
$0.80 - $3.30
$0.80
$0.80 - $3.30
$0.80 - $3.30
$0.80

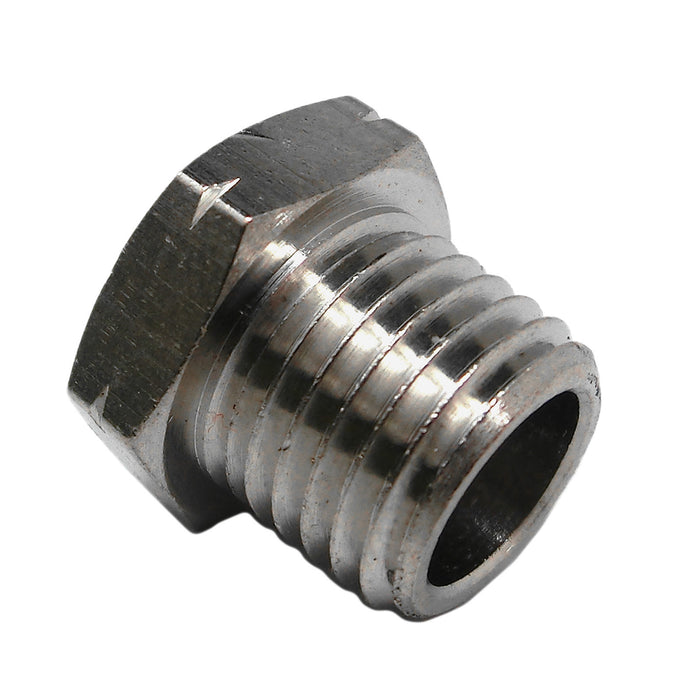

Material: Brass with nickel plating
SKU am-2185
  • Description
  • Specifications

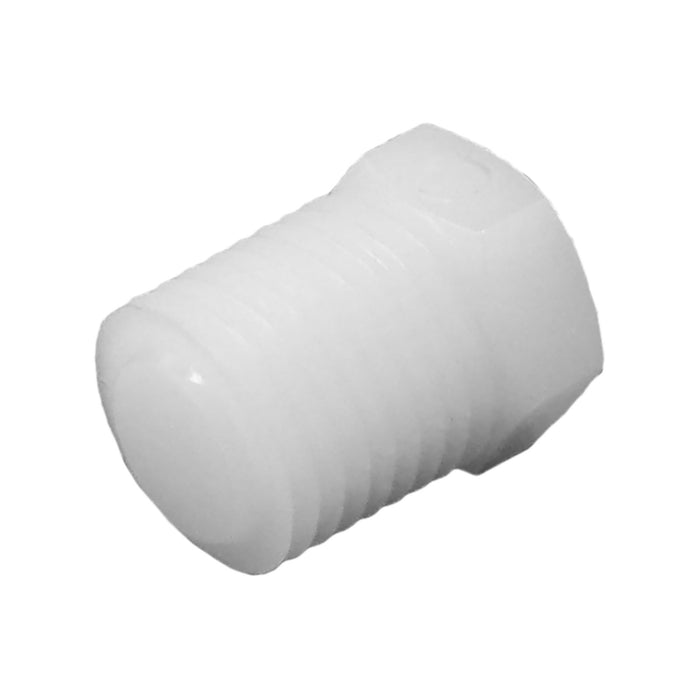

  • Select either a Nylon or Brass plug for a 1/4 in. NPT port.

    Nylon has an operating pressure up to 200 psi, while the Brass has an operating pressure up to 250 psi.

    NPT THREAD
    Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
    Pipe Size (NPT) 1/8 1/4 3/8 1/2
    Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
    Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch
    • Height: 0.593 in.
    • Hex Width: 0.525 in., 17 mm or 11/16 in. wrench
    • Length: 0.715 in.
    • Material: Nylon, Brass
    • Operating Pressure: Nylon up to 200 psi, Brass up to 250 psi
    • Port(s): 1/8 in. NPT male
    • Weight: 0.01 lbs., 0.3 lbs.
