This product has been discontinued.

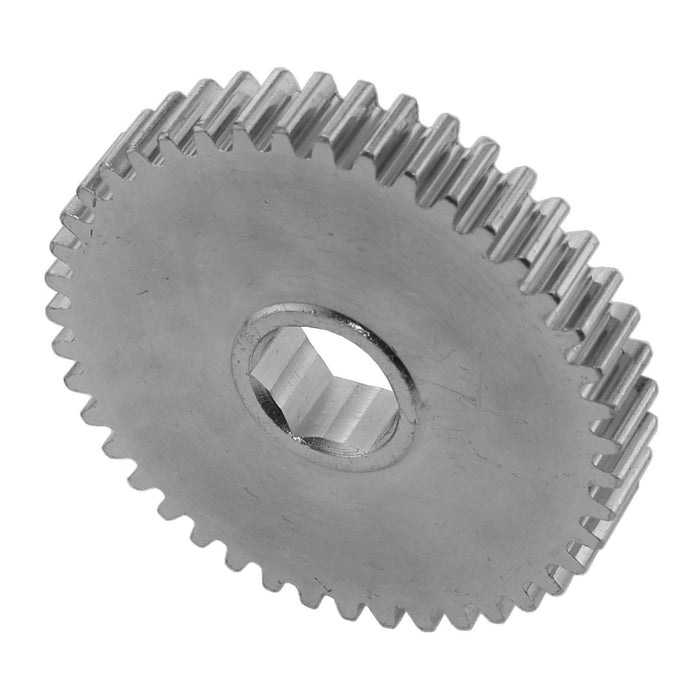

43 Tooth 20 DP 0.5 in. Hex Bore Steel Gear

Name: 43 Tooth 20 DP 0.5 in. Hex Bore Steel Gear
Brand: AndyMark
SKU: am-2565
Price: 16.0 USD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

by AndyMark

$16.00 USD - $16.00 USD

$16.00 USD

$16.00 USD - $16.00 USD

$16.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued , see similar 20DP gear

Description
Specifications
Documentation

This gear can be used in the used in the Toughbox series gearboxes, replacing the 50 Tooth Large Output Gear. It would be paired with a 21 Tooth Small Cluster Gear, in order to increase the output speed of the Toughbox.

Standard Toughbox output reduction: 12.75:1
New Toughbox output reduction, using this gear and a 21 Tooth Small Cluster Gear: 7.31:1
- Bore: 0.500 in. [12.7 mm] (1/2) Hex
- Diametral Pitch: 20
- Finish: Zinc Plated
- Material: 4140 Steel
- Pitch Diameter: 2.15 in.
- Pressure Angle: 14.5°
- Teeth: 43
- Thickness: 0.373 in.
- Weight: 0.337 lbs.
CAD Files
am-2565 43T 20DP 14.5PA 500IN Hex Bore Gear.STEP
Layout Prints
am-2565 43T Large Output Gear REV4.pdf
