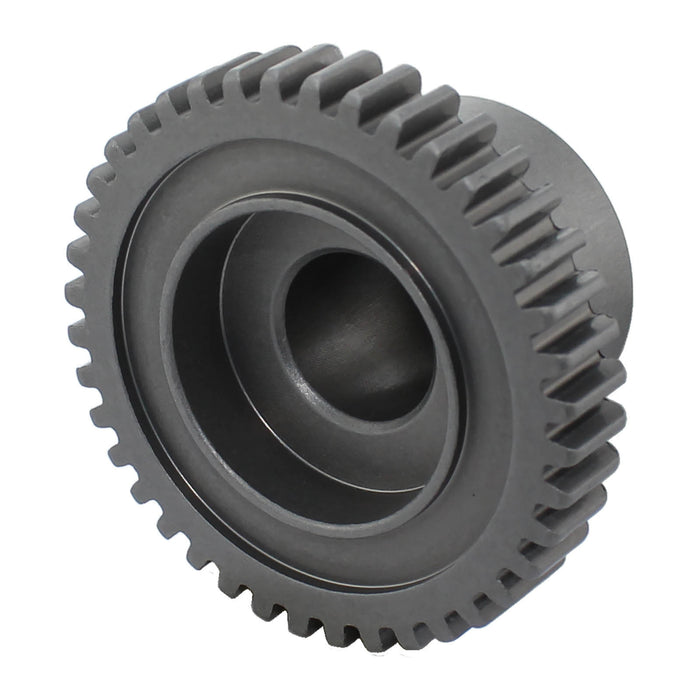

40 Tooth 20 DP 0.5 in. Round Bore Aluminum Bolt Circle Bearing Gear for Swerve & Steer

by AndyMark
Save 34% Save 34%
$32.00
$32.00 - $32.00
$32.00
$21.00
$21.00 - $21.00
$21.00
This gear is a crucial part of the AndyMark Serve & Steer, swerve module.
SKU am-3013b
  • Description
  • Specifications
  • Documentation

  • This gear is a crucial part of the AndyMark Swerve & Steer, swerve module. This component translates steering to the drive module from the steering motor.

    • Bore: 1.125 in. Round
    • Diametral Pitch: 20
    • Face Width: 0.375 in.
    • Finish: Nituff Anodized
    • Hole Pattern: Qty 4 10-32 threaded holes on a 0.94 in. circle
    • Hub Depth: 0.743 in.
    • Hub Diameter: 1.249 in.
    • Material: 6061-T6 Aluminum
    • Overall Depth: 1.173 in.
    • Pitch Diameter: 2 in.
    • Pressure Angle: 14.5°
    • Teeth: 40
    • Weight: 0.146 lbs.

  • CAD Files

    am-3013b 40T Bearing Gear.STEP

    Layout Prints

    am-3013b 40T Bearing Gear.PDF
