This product has been discontinued.
12 Tooth 20 DP 8 mm Round Bore Steel Shaft Gear for Swerve & Steer - am-3018b_1 - Image-1 - migrated

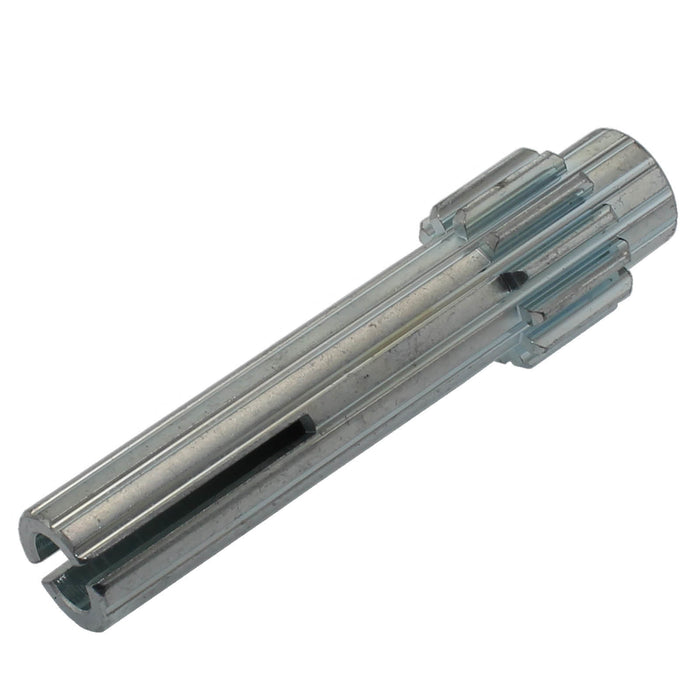

12 Tooth 20 DP 8 mm Round Bore Steel Shaft Gear for Swerve & Steer

by AndyMark
$16.00
$16.00 - $16.00
$16.00
$9.00
$9.00 - $9.00
$9.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued

This product is currently unavailable for purchase

SKU am-3018b
  • Description
  • Specifications
  • Documentation
  • This gear is used as the CIM pinion in the Swerve & Steer. It has a slot that serves dual purpose as both a keyway for a 2 mm wide key, but also as a clamping feature for extra retention.
    • Bore: 8 mm Round w/ keyway
    • Diametral Pitch: 20
    • Finish: Zinc Plated
    • Material: 4140 Steel
    • Pressure Angle: 14.5°
    • Teeth: 12
    • Weight: 0.123 lbs.

  • CAD Files

    am-3018b 12T CIM Shaft Gear.STEP

    Layout Prints

    am-3018b 12T CIM Shaft Gear.PDF
