24T Plastic HTD Pulleys

by AndyMark

$4.80 - $9.10

$4.80

$4.80 - $9.10

$4.80 - $9.10

$4.80

These are 24 tooth pulleys that work with 5 mm pitch HTD timing belts.

Quantity

SKU am-3401

Description
Specifications
Documentation

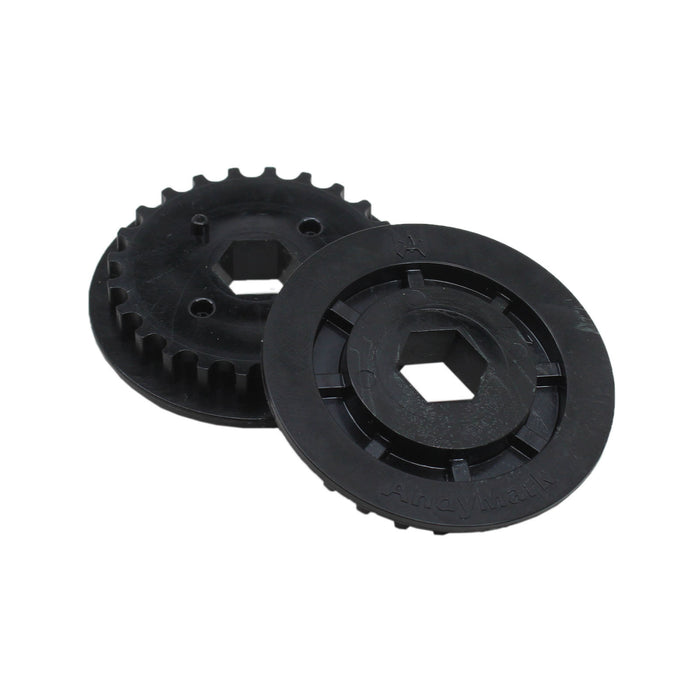

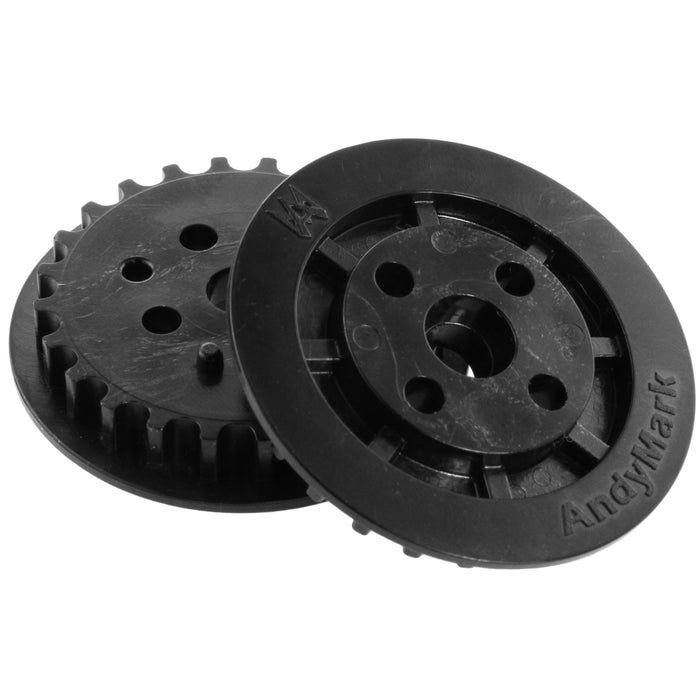

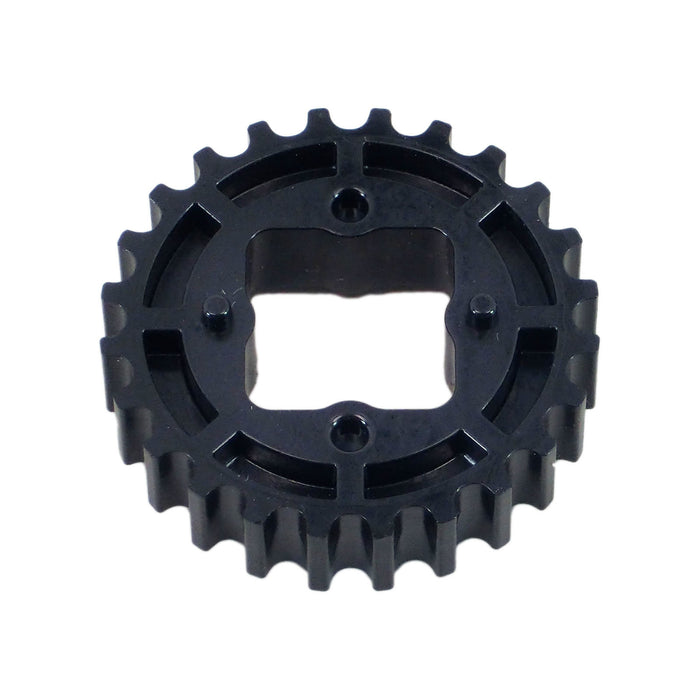

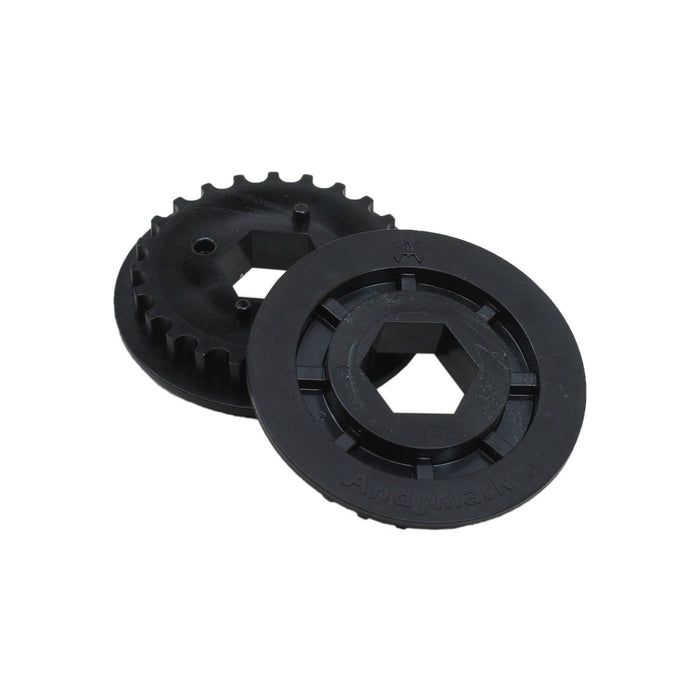

These are 24 tooth pulleys that work with 5 mm pitch HTD timing belts. There are three bores available, including 1/2 in. Hex, 3/8 in. Hex, and Nub. Use the pulleys as they comes with a 9mm wide belt or add a Pulley Extension in between the halves to use it with a 15mm wide belt or two 9mm wide belts.
While assembling your robot, it can be helpful to add a drop of super glue to keep the pulley halves together.
- Belt Profile: 5 mm pitch HTD
- Bore: 0.500 in. [12.7 mm] (1/2) Hex, 3/8 in. Hex, Nub
- Color: Black
- Material: Polycarbonate
- Maximum Diameter: 1.654 in. [42mm]
- Pitch Diameter: 1.504 in.
- Teeth: 24
- Weight: 0.03 lbs.
- Width: 0.551 in. [14 mm], extension adds 0.335 in. [8.5 mm]
CAD Files
am-3404 24 tooth HTD pulley extender REV2.STEP
am-3403 24 tooth HTD pulley half 500hex.STEP
am-3402 24 tooth HTD pulley half 375hex.STEP
am-3401 24 tooth HTD pulley half 6mm bore.STEP
Layout Prints
am-3404 24 tooth HTD pulley extension REV2.PDF
am-3403 24 tooth HTD pulley half 500hex.PDF
am-3402 24 tooth HTD pulley half 375hex.PDF
am-3401 24 tooth HTD pulley half 6mm bore.PDF

It just works.

We use these all over. It's our go to pulley. Being able to split the pulley in half lets us install belts without a tensioner easily!

Great product

Make sure to also buy the center-section extender for use on wide or multi-belt applications.

'Simple to use with Tetrix components'

'bolts up nicely to the 4 hole wheel pattern on tetrix kit'
