2x1 Single Stage HD Elevator Bearing Kit

by AndyMark
Sold out
$109.00 - $109.00
$109.00
$109.00
$109.00 - $109.00
$109.00
SKU am-3779a
  • Description
  • Specifications
  • The AndyMark 2x1 Elevator System is designed to be a robust, easy to use solution for building reliable linear motion systems. This HD version of the popular Single Stage Elevator Bearing Kit provides additional strength by increasing the bracket thickness to 3/16 in. while still providing an easy-to-build solution to one of the most difficult parts of building these mechanisms. Precision cut sheet metal brackets support the rollers and bearings for a smooth single-stage linear system. Use this in conjunction with your existing stockpile of 2 in. x 1 in. aluminum tubing and gussets to quickly create linear motion systems of a variety of sizes.

    Note: This product is specifically designed for 2 in.x1" (outside dimensions) aluminum box tubing. It is not compatible with other sizes of aluminum tubing.

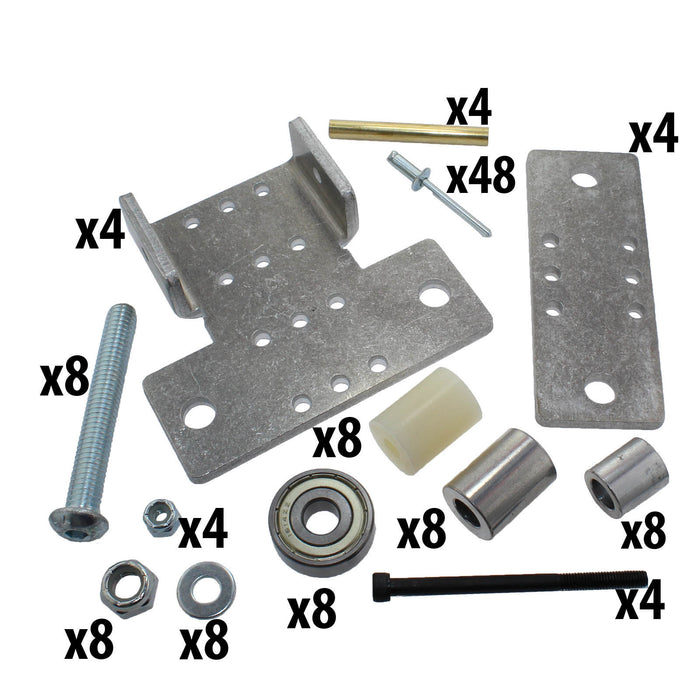

    Individual Components within Bundle:
    • 4 - 2x1 Large Bearing Plate, Rev3 (am-3794a)
    • 4 - 2x1 Elevator Small Bearing Plate, Rev2 (am-3793a)
    • 8 - 3/4 in. OD, 0.382 in. ID, 1 in. long Aluminum Spacer (am-1450)
    • 8 - 5/8 in. OD, 0.382 in. ID, 11/16 in. long Aluminum Spacer (am-1507)
    • 8 - Nylon Roller for 2x1 Elevator (am-1449)
    • 8 - 3/8-16 x 2.75 in. Hex Bolt (am-1508)
    • 8 - 3/8-16 Nylock Jam Nut (am-1394)
    • 48 - 3/16 in. Steel Rivet, 1/8-1/4 in. Grip (am-1226)
    • 8 - 1614ZZ Bearing (am-0209)
    • 8 - 1/4 in. Washer (am-1027)
    • 4 - 10-32 Nylon Insert Nut (am-1042)
    • 4 - 10-32 x 2.75 in. SHCS (am-1397)
    • 4 - 0.192 in. ID, 0.25 in. OD, 2.14 in. long Brass Tube (am-0602)
    • Weight: 4 lbs.
