This product has been replaced by am-4244a

Bearing and Motor Mount Bracket 1in pitch

Name: Bearing and Motor Mount Bracket 1in pitch
Brand: AndyMark
SKU: am-4244
Price: 7.0 USD
Availability: OutOfStock
Rating: 5.0 (1 reviews)

by AndyMark

$7.00 USD - $7.00 USD

$7.00 USD

$7.00 USD - $7.00 USD

$7.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-4244a

Description
Specifications
Documentation

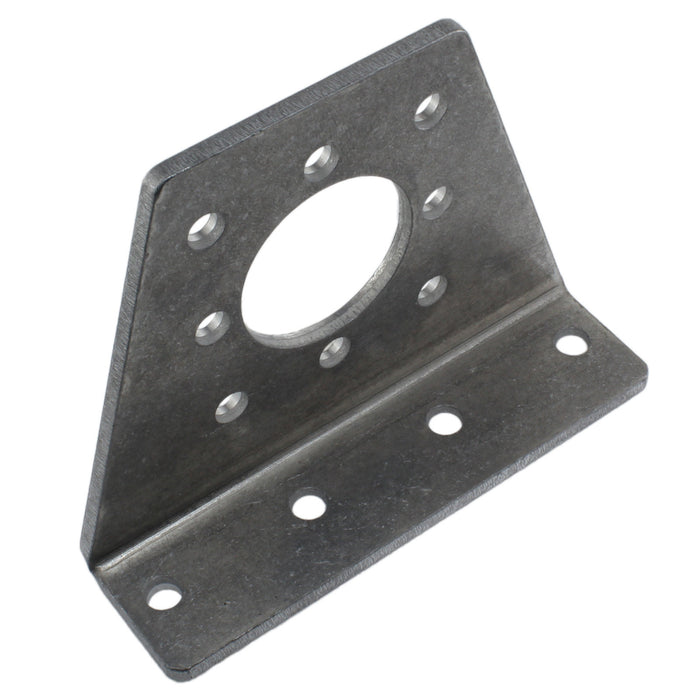

This simple bracket handles so many of your mounting needs! Mount motors or gearboxes anywhere and make axle supports with bearings - it's a do-it-all, put-it-anywhere bearing and motor mount bracket.

Any motor or gearbox with a 2-inch diameter bolt circle can be mounted in this bracket. The center hole is sized to hold a standard 1.125 inch outside diameter bearing.

Examples of motors with a 2 in. diameter bolt circle:
- 2.5 in. CIM Motor
- NEO Brushless Motor
Examples of gearboxes with a 2 in. diameter bolt circle
- Depth: 1 in.
- Height: 2.679 in.
- Length: 3.5 in.
- Material: 5052 Aluminum
- Thickness: 0.13 in.
- Weight: 0.104 lbs.
CAD Files
am-4244 1IN Bent Bearing Side Mount Gusset.STEP
Layout Prints
am-4244 1IN Pitch Bent Motor and Bearing Bracket REV2.PDF
am-4244 1IN Pitch Bent Motor and Bearing Bracket.pdf
