AMPD AndyMark Power Distribution

AMPD AndyMark Power Distribution

by AndyMark
Sold out Price TBD
SKU am-5754
  • Description
  • Specifications

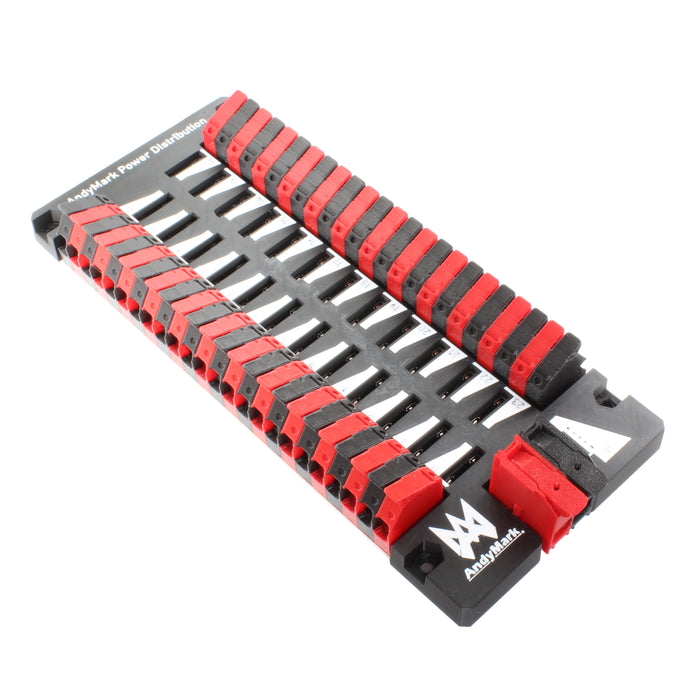

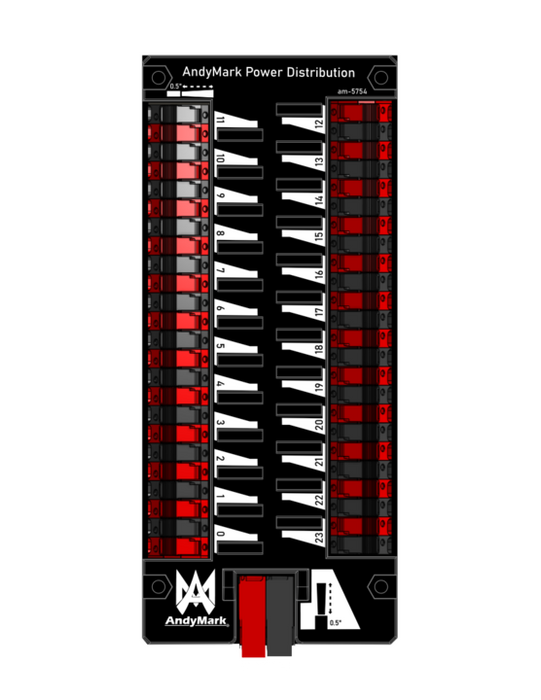

  • The AMPD Power Distribution Board provides 24 independently fused output channels rated for 40 A continuous current per channel at 12 V. Each channel uses a standard ATO/ATC fuse and fully insulated toolless lever connector for safe, reliable power distribution. The board’s 22.5° angled outputs and ½″ hole-grid mounting pattern enable clean, accessible, and versatile installation on FRC robots.

    • Breaker Sizes: ATO/ATC breakers
    • Connector Entry Angle: 22.5 degrees
    • Connector Style: Tooless Lever
    • Max Input Continuous Current: 120A
    • Max Output Continuous Current: 40A
    • Mounting Holes: #10 bolts on ½” grid
    • Nominal Voltage: 12V
    • Output Connections: 24 Angled ports
